Product Details:
Payment & Shipping Terms:
|
| Product Name: | Battery Powered Rail Transfer Cart | Parameter: | 3500*2000*500 |
|---|---|---|---|
| Operation Way: | Pendant & Remote Controller | Running Distance: | Unlimited |
| Color: | Red, Customized | Power Source: | Battery |
| Load Capacity: | 5 Tons, Customized | Warranty: | 2 Years |
| Running Speed: | 0~20m Per Minute | Wheel: | 4 |
| Highlight: | rail transfer car,load transfer trolley |
||

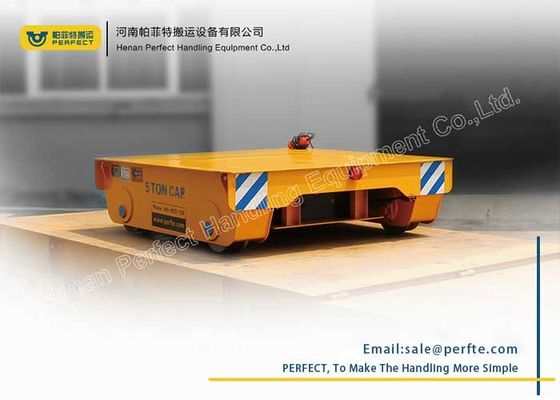

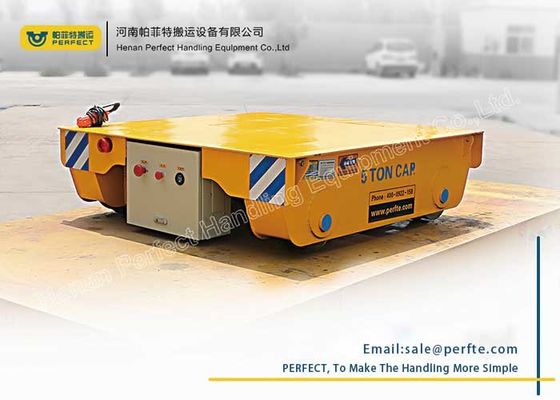

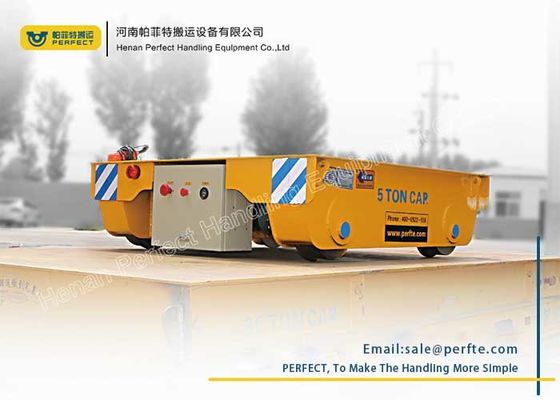

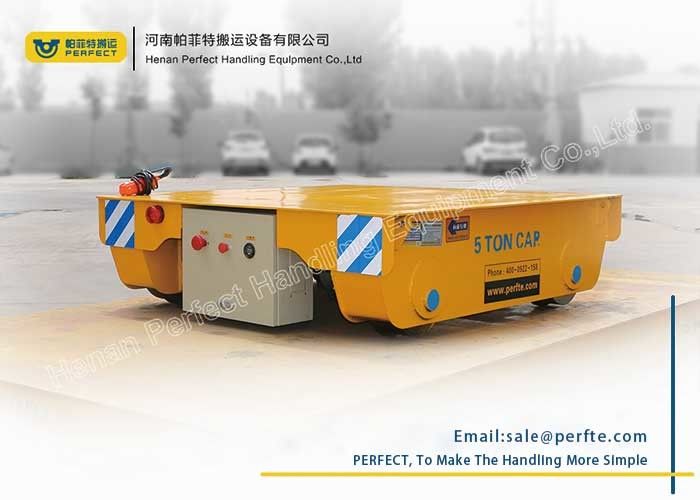

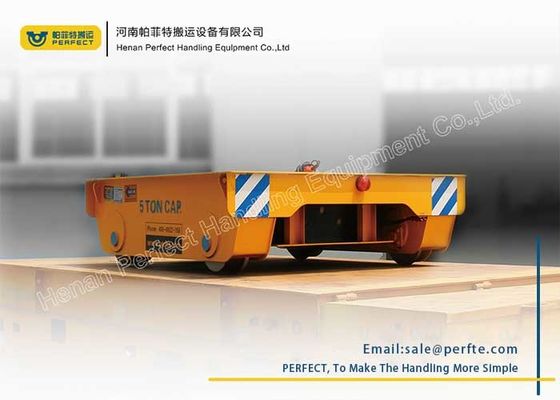

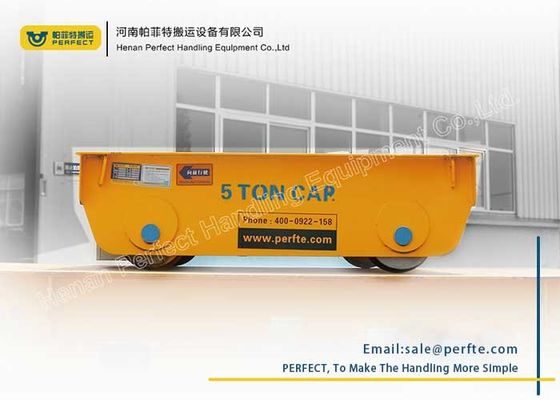

5 Ton Battery Powered Rail Transfer Cart For Industrial Using
Preview of Battery Powered Rail Transfer Cart
Our BXC series rail transfer cart is powered by battery. The battery is fitted in the inner of the cart. The direct-current machine gets its power from the electric control system, which make the cart to start, stop, move forward and move backward. It could run on straight line, L-form track or curved track. We can also fit hydraulic lifting system if needed.
Parameter of Battery Powered Rail Transfer Cart
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 | |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Advantages of Battery Powered Rail Transfer Cart
Low noise
It causes low noise level.
Maximum safety
We make sure a maximum safety for operators and the material handled. What we really care is the safety of everyone involved in the process of machine operation.
Easy for operation
These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
Easy to implement into manufacturing process
Operates on standard floors; Do not require complex or permanent installation.
Suitable for All Kinds of Weight
The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its highest payloads is up to 300 ton.
Sales Service
With quick quality information feedback system and technology service team, we can provide with high quality service for you. well. We can help you to fit, adjust the equipment till they work normally. We are striving for high quality for you all the way!
