Product Details:
Payment & Shipping Terms:
|
| Application: | Heavy Cargo Die Handling In Plant & Outside | Load Capacity: | 30T/Customized |
|---|---|---|---|
| Power Mode: | Storage Battery | Control Mode: | Pendant/Remote/PLC Control |
| Material: | Q235 | Dimension: | 5000*2200*650/Customized |
| Runing Speed: | 0-25m/min | Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Turning Structure: | Mechanical | Battery Type: | Free Of Maintenance |
| Highlight: | die handling equipment,powered trolley cart,Die Transfer Cart Battery Powered |
||

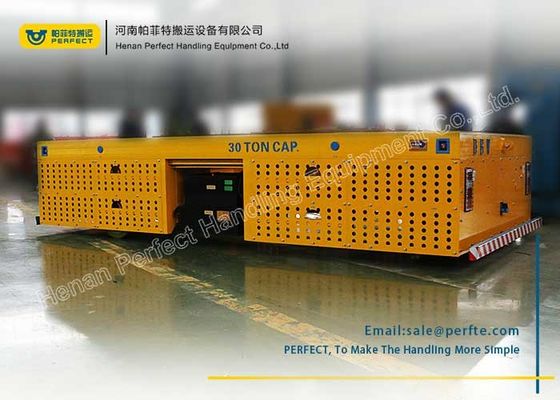

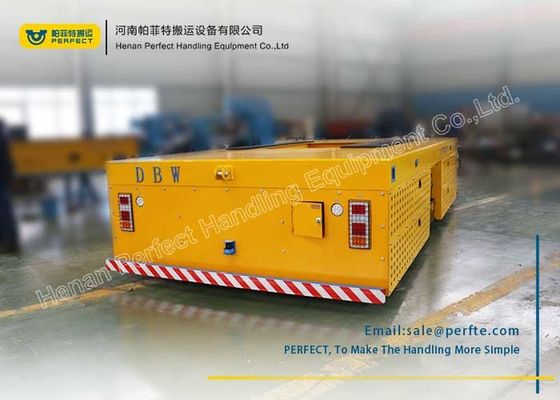

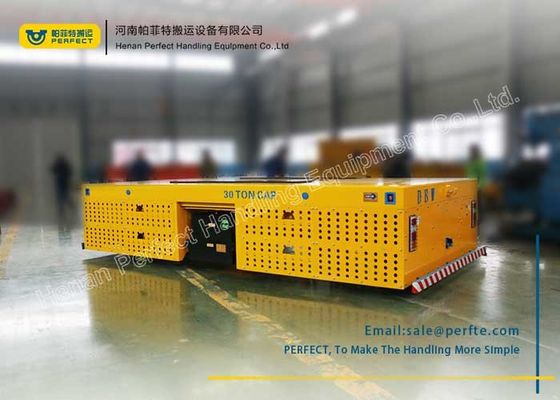

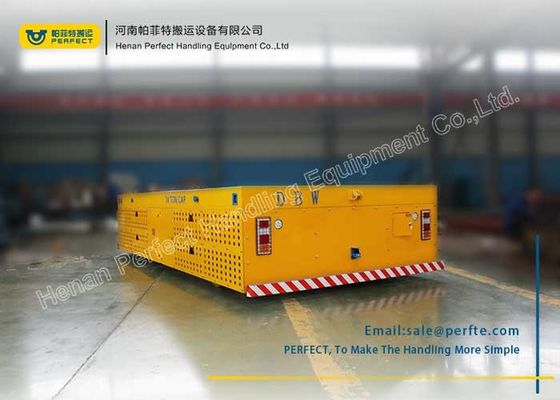

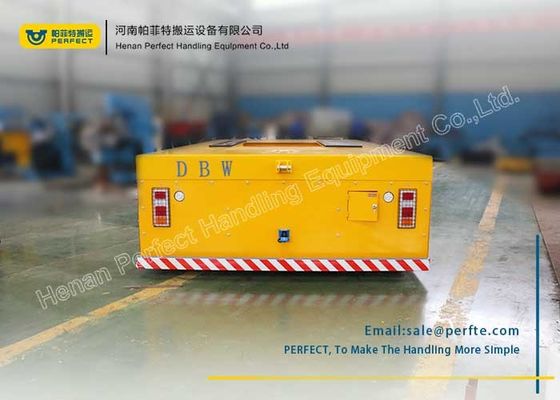

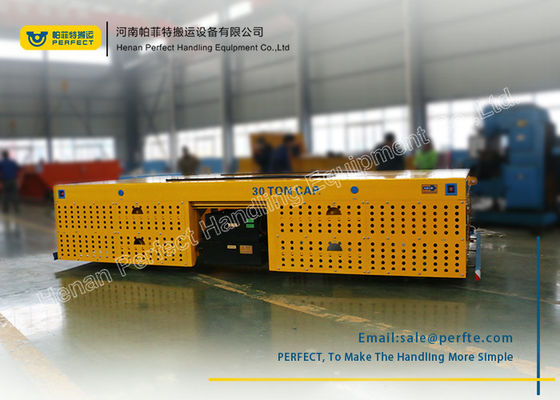

No Rail Multidirectional Cargo Carriage Heavy Die Transfer Cart
Product Over View
We offer a wide range of specifically designed no rail multidirectional heavy die transfer cart for the unique needs of both stamping and molding. These products include Die Transport Equipment, Die Cart, and Die Transfer Trolleys and Die Trailers Systems. This kind of die transfer cart could run on railways or cement floor which is chosen according to the transportation route or clients' project plan. The selecting concept: the rail transport cart is mainly used for fixed route no need of rotation; while the trackless die transfer cart on cement floor can realize 360° direction turning.
Product Application
The no rail multidirectional heavy die transfer cart has been widely used in metallurgy, machinery fabrication, auto makers, heavy industry, light industrial, die maker, construction machinery maker, shipyard, port cargo yard, steel transfer, minning transfer, air and space as well as military industries and so on. It is also used to tansfer and handling equipment or material from workshop to workshop or from bay to warehouse.
Product Parameter
Main Parameters of the Die Transfer Cart | ||
Load Capacity (t) | 30 | |
Impact Rated Load (t) | 45 | |
Table Size(mm) | Length | 5000 |
Width | 2200 | |
Height | 650 | |
Cart Weight (t) | 8.8 | |
Turning Type | Turning while driving with no stop | |
Wheel Material | ZG55& PU | |
Control Mode | Wireless Control or Pendant | |
Brake Principle | Electric Magnetic Brake | |
Battery | Free of Maintenance | |
Radar Control | 3-0.3m Automatic Stop for Obstacles | |
Other Functions | Turning Light, Night Light, Power Display | |
Product Details & Working Principle
This kind of no rail multidirectional heavy die transfer cart is powered by storage battery, which is free maintenance battery pack. The battery is installed in the cart, and supply DC electricity to the control system. It is consist of battery, motor, reducer, cart frame, electric appliance, etc. There are the pendant control and wireless control two types of control methods.
Packing & Shipping
For length is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
