Product Details:
Payment & Shipping Terms:
|
| Product Name: | No Rail 30 Ton Heavy Duty Electric Battery Power Flat Cart | Type: | Transfer Car |
|---|---|---|---|
| Warranty: | 48 Months | Running Speed: | 0-15m/min |
| Orignal: | Henan | After-sales Service: | Yes,free |
| Highlight: | material transfer trolley,industrial transfer car |
||

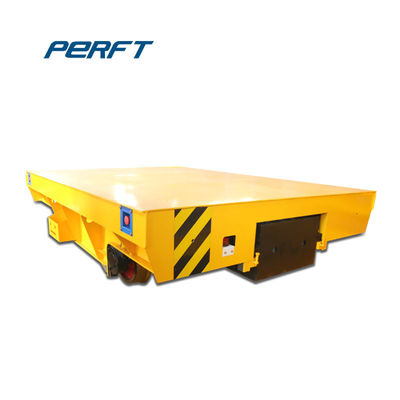

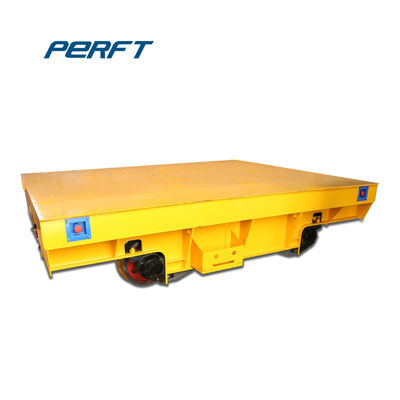

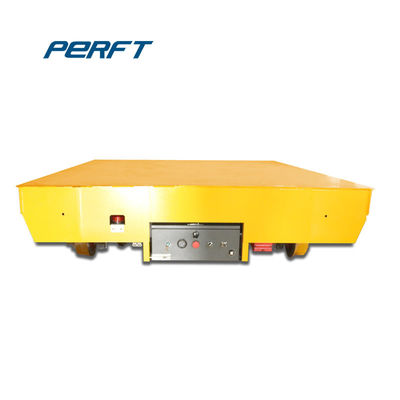

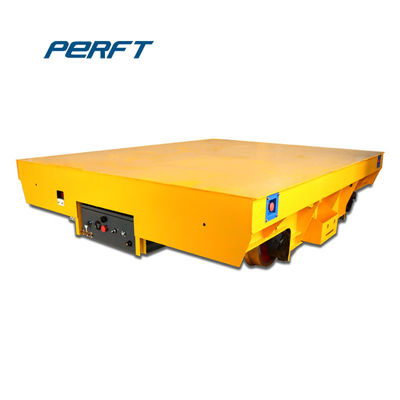

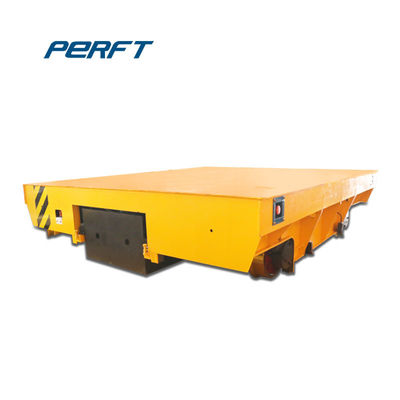

No Rail 30 ton Heavy duty Electric battery power Flat cart Remote control cart
Product Descraption
No Rail 30 ton Heavy duty Electric battery power Flat cart Remote control cart features battery power supply, DC motor drive, large bearing capacity, stable start. it doesnot rely on the guide rail, so can achieve two-way travel. Hydraulic steering mechanism guarantees a smaller turning radius,so it can achieve a 360 degree turn be in a limited space .The vehicle comes standard with two batteries, which can be used in rotation, ensuring continuous operation of the vehicle. Special battery-replacement trolley works within five minutes.
How it Works
Parameters
| Rated load | 10t | 20t | 30t | 40t | 50t | 63t | 40t | 50t | 63t |
| Platform size(mm) | 4600*2500 | 5000*2600 | |||||||
| Structure | 4 wheels | 5 wheels | |||||||
| Minimun bending radium(mm) | ≤5000 | ||||||||
| Forwarding speed(m/min) | 10-30 | ||||||||
| Driving Machanism | DC motor | ||||||||
| Voltage grade | AC32 | ||||||||
| Braking Mechanism | Electromagnetic braking | ||||||||
| Steering machanism | Hydraulic steering | ||||||||
| Full load continuous travel distance(m) | ≥2000 | ||||||||
| Control way | Wire control | ||||||||
| Convering object | solid wood/rubber board | ||||||||
| Standard object | Charger:1set; Battery:2 set; Battery change cart:1set | ||||||||
| Option | Anti-collision photoeletric switch,safety scanner, wireless remote controller | ||||||||
