Product Details:
Payment & Shipping Terms:
|
| Warranty: | 12 Month Long Guarantee | Capacity: | 1-300T |
|---|---|---|---|
| Power Supply: | Battery | Running Speed: | 0-25m/min(Adjustable) |
| Material: | Q235 Steel | Color: | Customized |
| Product Name: | High Speed Material Handling Rail Ferry Transfer Cart On Railway | After-sales Service: | Field Maintenance And Repair Service |
| Highlight: | electric transfer cart,rail transfer car |
||
1. The rail ferry transfer cart is a model derived from the rail flat car. The rail ferry transfer cart is a kind of heavy-duty tool car that runs on the rail. It is a workshop transport vehicle that is driven by electric power, handle or remote control. Because of its heavy load, the car can be customized, so it is in many industries. Widely used.

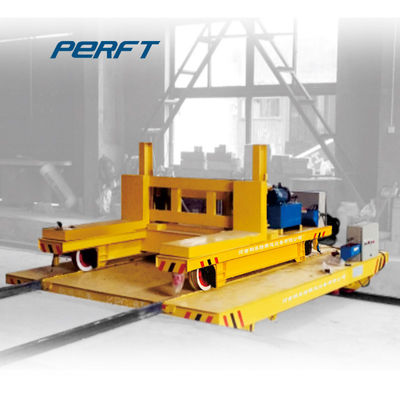

The rail ferry transfer cart, also known as the sub-mother car, is composed of two vehicles. The bottom car runs in one direction on the track. The track on the bottom car platform is arranged to facilitate the operation of the upper car. The direction of the upper car is generally intersected with the bottom car. of.
Technical parameters of BJT-2T (Customizable)
| Model | BWP-2T | BWP-10T | BWP-20T | BWP-30T | BWP-50T | BWP-63T | BWP-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
The material handling rail ferry transfer cart can be superimposed. The car has the characteristics of strong driving and pushing. The big car runs on the ground or the trench, and the track is installed on the big car platform. The whole vehicle running route is arranged in front and rear, the big car After the horizontal rapid movement, it can accurately stop, locate and connect the rails. When the heavy vehicle is running again, it can be converted to slow speed, and the inverter can be converted quickly when the vehicle returns.
1. We offer a full range of customized services
2. We can customize the transfer cart according to your needs for the tonnage, shape, color, safety device and the way of operation.
Welcome to consult
Consult now for free technical advice from engineers
Henan Perfect Handling Equipment Co., Ltd has been devoting to development Manufacture & Sale Of Material Handling System for more than 15 years. We Invest a large amount of money each year for product innovation. Therefore, our products are in a leading position in the industry.
