Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Manually Loaded Trolley To Transport Heavy Material Hand Truck Motorized Conveyor | Material: | Q235 |
|---|---|---|---|
| Capacity: | 1-300T | Color: | Customized |
| Application: | Industrial Filed | Warranty: | 12 Months |
| After-sales Service Provided: | Engineers Available To Service Machinery | ||
| Highlight: | electric transfer cart,load transfer trolley |
||

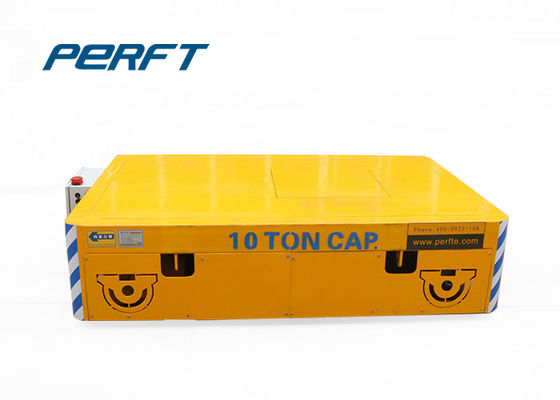

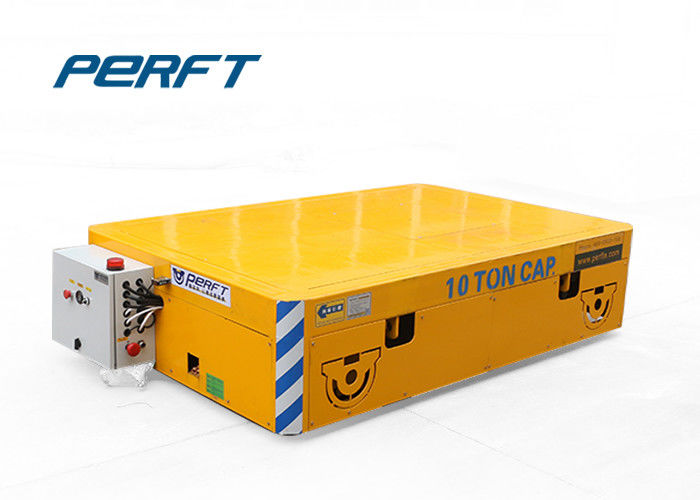

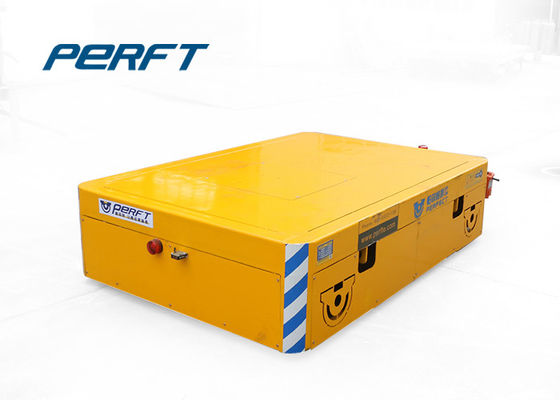

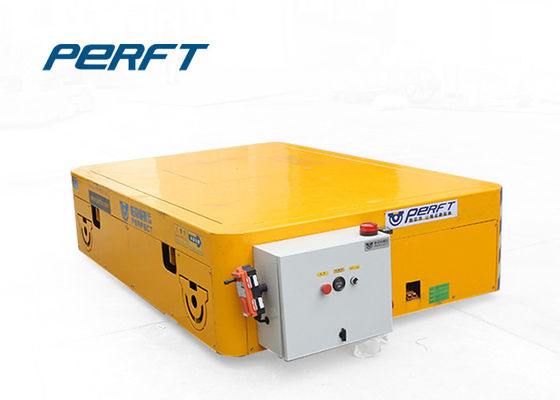

industrial manually loaded trolley to transport heavy material hand truck motorized conveyor
The industrial manually loaded trolley to transport heavy material hand truck motorized conveyor is our most popular trolley. It is used to move dies,coils or materials between the pressroom and the die storage and maintenance area. This industrial manually loaded trolley to transport heavy material hand truck motorized conveyor has the advantage of moving the entire length of the manufacturing facility, where dies that are moved by cranes are limited to the distance of the crane travel, or must be transferred from crane bay to crane bay. Our standard industrial manually loaded trolley to transport heavy material hand truck motorized conveyor design is controlled by a hand held push button controller with small turning radius.
The BWP industrial manually loaded trolley to transport heavy material hand truck motorized conveyor can achieve 360 degrees of flexible turning,forward,backward,left and right rotation,speed regulation,emergency stop and safety warning lights.It has simple functions and smooth running. and equipped with two operating modes of wireless and cabel,the operation is small,and is not restricted by any space environment. It is widely used in various industries.
Site map for customer use
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Max. Wheel Load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground Requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table Size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 |
| Height (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel Base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles Distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning Radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning Structure | Mechanical | ||||
| Motor Power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel Diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel Material | ZG55+hydropurture | ||||
| Running Speed (m/min) | 0-15 | 0-12 | |||
| Brake Principle | Electric magnetic brake | ||||
| Operation Method | Raido Remote Control | ||||
| Battery Maintainance | Free of maintainance | ||||
| Charger's Installation | Installed on cart | Split-type | |||
| Cart Color | Customized | ||||
| Charger's Function | Automatically cut off the power when the battery is fully charged | ||||
| Radar Control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning Equipment | Horn and Flash Light | ||||
| Other Functions | Turning light, night light and power display | ||||
