Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Henan, China (Mainland) | Product Name: | 9 Ton Cable Reel Power Transfer Flat Cart On Rail |
|---|---|---|---|
| Application: | Industrial Filed | Color: | Customized |
| Capacity: | Customized | Running Speed: | 0-20m/min |
| After-sales Service Provided: | Engineers Available To Service Machinery | ||
| Highlight: | electric transfer cart,load transfer trolley |
||

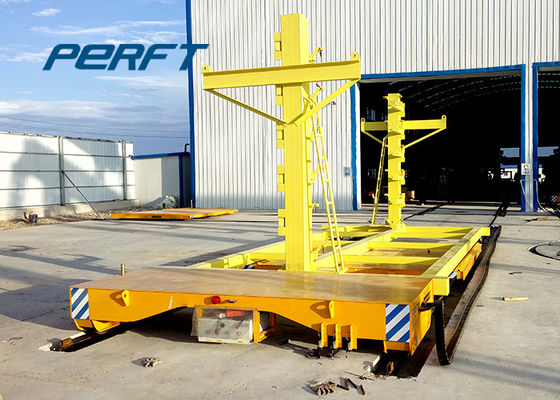

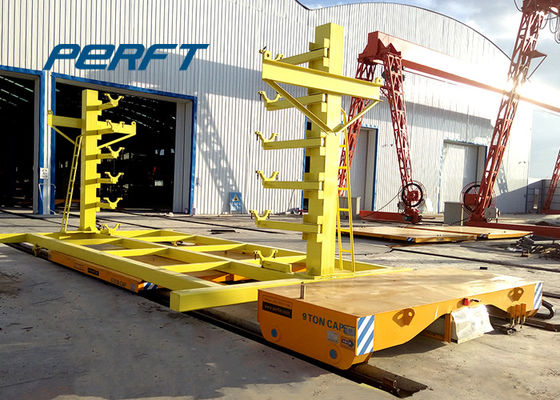

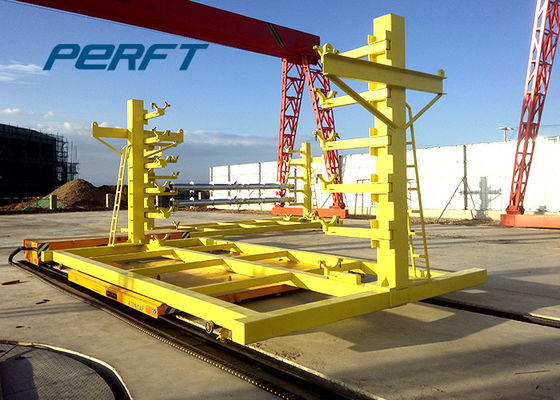

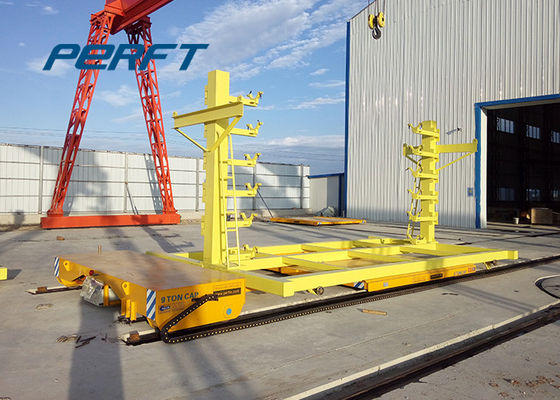

9 ton cable reel power transfer flat cart on rail motorized transfer trolley
The 9 ton cable reel power transfer flat cart on rail motorized transfer trolley for machine parts handling is based on our world renowned workshop cable reel power transfer flat cart on rail motorized transfer trolley and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our 9 ton cable reel power transfer flat cart on rail motorized transfer trolley for machine parts handling is available in a number of configurations specifically designed to suit the needs of our customers.
Site map for customer use
Site map for customer useSite map for customer useail Trailer Rail Trailer
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
