Product Details:
Payment & Shipping Terms:
|
| Product Name: | PLC System Remote Controlled Battery Motorized Steel Coil Transfer Car On Rails For Aluminum Coiling Plant | Battery Capacity(Ah): | 180-600 |
|---|---|---|---|
| Running Time When Full Load: | 2.9-4.35 | Battery Voltage(v): | 24-72 |
| Rail Inner Gauge(mm): | 1200-2000 | Wheel Base(mm): | 1200-7000 |
| Running Distance For One Charge(Km): | 7 | ||
| Highlight: | motorized rail cart,coil transfer cart,PLC Motorized Steel Coil Transfer Car |
||

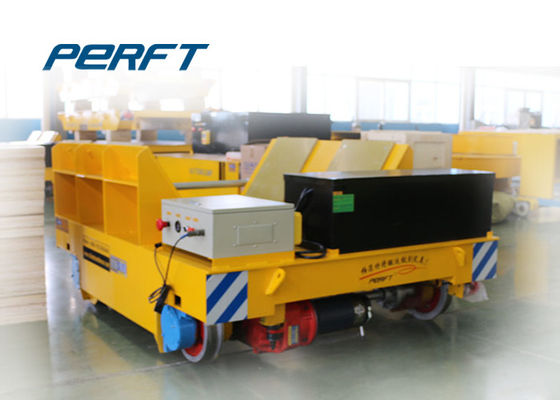

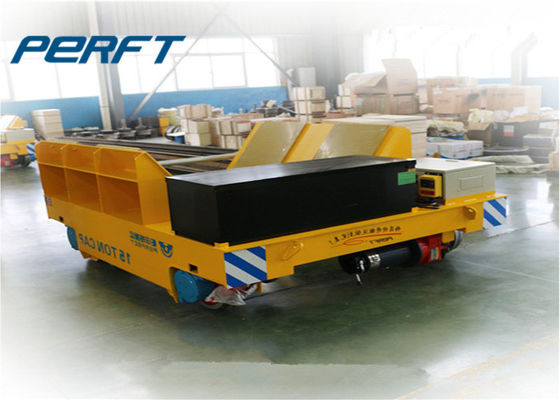

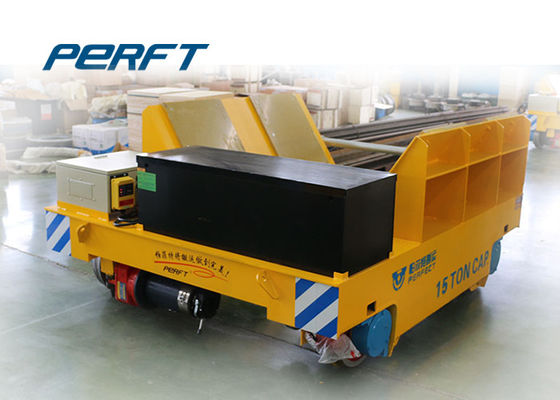

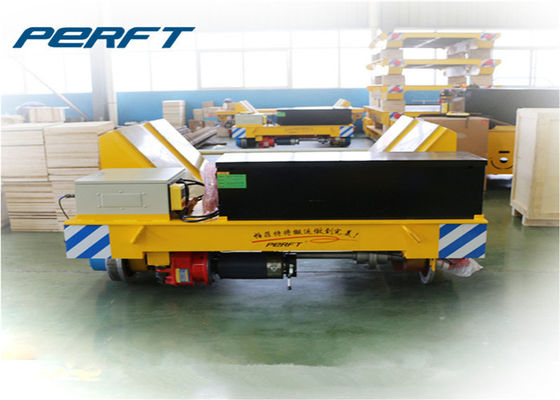

PLC System Remote Controlled Battery Motorized Steel Coil Transfer Car on Rails for Aluminum Coiling Plant
KPDZ series PLC Controlled Battery Motorized Steel Coil Transfer Car on Rails for Metal Plant are powered by the low voltage electricity from the railways. The power source AC 380v is transformed into AC 36v two-phase and are respectively connected to the two rails. Then the wheels and conducting plate lead the AC 36v electricity to the electrical appliance box which is installed on the PLC Controlled Battery Motorized Steel Coil Transfer Car on Rails for Metal Plant..And then the AC 36v is transformed into DC 36V through the transformer. then controls DC Metallurgy motor through DC control system to make the flat carts start, stop, go forward and backward and adjust the speed and so on.
Advantage
1.PLC system.
2.V or U frame to add the coil stability.
3.Wireless remote control.
4.The V or U shape can be remove freely off.
5.The capacity,table size,motor power,running speed can be customized.
6.The Ground Clearance of the Steel Coil Transfer Car on Rails required 50mm.
7.The platform of the coil transfer trolley is water roof designed.
8.Widely used in the aluminum coil plant.
Scheme
Technical Table
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Componences
Application
