Product Details:
Payment & Shipping Terms:
|
| Product Name: | Cable Reel Coil Rail Transfer Carts For Factory Steel Coils And Aluminum Coils Material Transportation | Type: | Coil Rail Transfer Trolley |
|---|---|---|---|
| Running Speed(m/min): | 0-25 | Ground Clearence(mm): | 50 |
| Max Wheel Load(KN): | 265.2 | Wheel Diameter(mm): | Ø600 |
| Highlight: | motorised rail trolley,motorized rail cart |
||

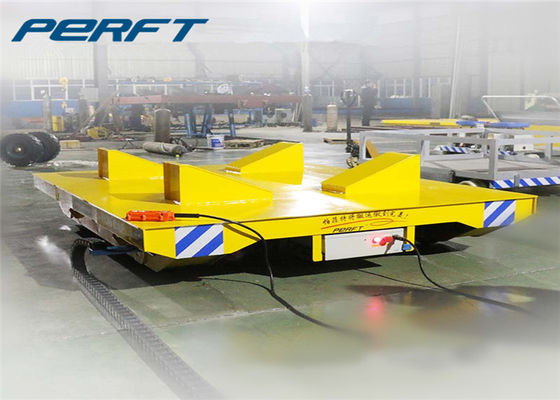

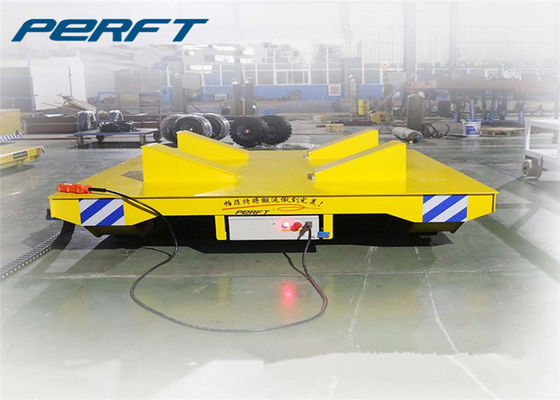

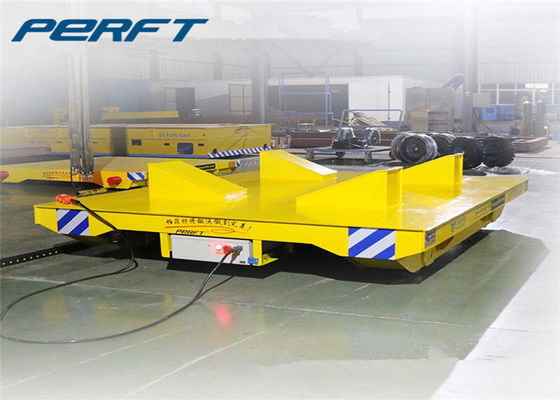

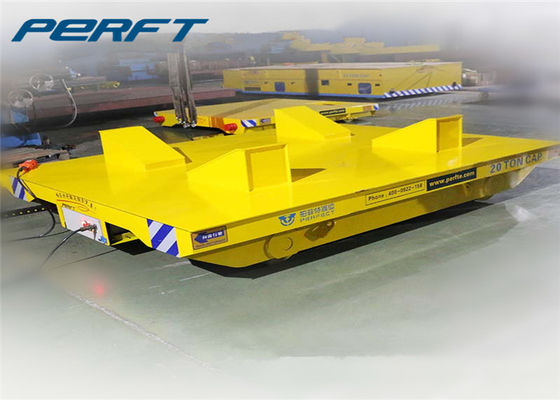

cable reel coil rail transfer carts for Factory steel coils and aluminum coils material transportation
The cable reel coil rail transfer carts for Factory steel coils and aluminum coils material transportation is powered by cabled reel. The power source 380V alternating-current is supplied to the cable reel coil transfer carts motor by cable. Cable is collected and released by coiling device mounted underneath the cable reel coil transfer carts. The cable reel coil transfer carts can realize full automatic operation by PLC system. The cable reel coil transfer carts can be applied in the environment such as severe environment,high temperature, anti-explosive etc. Simple structure and low cost make the cable reel coil transfer carts popular for workshop transportation. The cable reel coil transfer carts can be applied in the occasion with any loading capacity and high using frequency. If the running distance of the cable reel coil transfer carts is beyond 50m, the cable reel coil transfer carts needs to install cable arranger to help with cable rolling. The max running distance of the cable reel coil transfer cartsis up to 200-400m.
Advantage and functions of the cable reel coil rail transfer carts for Factory steel coils and aluminum coils material transportation
1. The remote controller of the cable reel coil transfer carts has horn , forward , backward , fast forward , rewind , braking , etc .
2. Micro-moving traction and the parking braking function to ensure that the ramp does not slip, and has manual parking brake clutch function.
3. Power emergency stop switch, reasonable installation position, convenient operation and acousto-optic warning. When the cable reel coil transfer carts is electrified, the warning lights flicker, warning people in the vicinity to pay attention to safety.
4. Charging wire of the cable reel coil transfer carts not less than 15m, with automatic wiring arrangement, retracts.
5.Anti-explosion and Anti-high temperature of the cable reel coil transfer carts.
6.The cable reel coil transfer carts is no limitation of work condition.
Main Componences of the cable reel coil rail transfer carts for Factory steel coils and aluminum coils material transportation
Technical Table of the cable reel coil rail transfer carts for Factory steel coils and aluminum coils material transportation
| Rated Load(t) | 2 | 10 | 20 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Wheel Base(mm) | 1200 | 2600 | 2800 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Wheel Diameter(mm) | Ø270 | Ø300 | Ø350 | Ø400 | Ø500 | Ø500 | Ø600 | Ø600 | Ø600 | Ø600 |
| Ground Clearence(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed(m/min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(KN) | 0.8 | 1.5 | 2.5 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Max Wheel Load(KN) | 14.4 | 42.6 | 77.7 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Reference Weight(t) | 2.3 | 3.8 | 5.5 | 77.7 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 |
The scheme of the cable reel coil rail transfer carts for Factory steel coils and aluminum coils material transportation
Application and Usage of the cable reel coil rail transfer carts for Factory steel coils and aluminum coils material transportation
Customized
Packaging & Shipping of the cable reel coil rail transfer carts for Factory steel coils and aluminum coils material transportation
1. Q: What is the size and load of this cable reel coil rail transfer carts ?
A:The size and load of our this cable reel coil rail transfer carts is customized design according to your requirement.
2. Q: How should I operate this cable reel coil rail transfer carts ?
A: The cable reel coil rail transfer carts is controlled by pendant & remote radio control. The controller could be push button or joy-sticker.
3. Q: Is there any braking system on this cable reel coil rail transfer carts ?
A: Yes, there are electromagnetic brakes on the rail transfer cart. When the cable reel coil rail transfer carts is power off, the brake will work automatically. And there are emergency stop buttons on the remoter and the rail transfer cart, you can push it for emergency stop.
4. Q:What is the warranty period? What kind of service do you offer in the warranty period?
A: The warranty period for our product is 12 months from the time we delivery, during the warranty period, we will send spare parts to you on our own cost if damaged because of bad quality, and we will guide you how to replace it. If necessary, our engineer is available to your factory for maintenance.
5. Q: How do you transport the cable reel coil rail transfer carts and what is the package ?
A: For the big part, we will pack it with tarpaulin and wood pallet on the bottom of the cable reel coil rail transfer carts to prevent it from moving. For the small part, we will pack it in wood case.
6. Q: What is the leading time, delivery term, and payment term ?
A: Usually our leading time is 45 days, for some special trackless transfer cart, such as hydraulic lifting agv transfer cart, it maybe longer to 60 days. About the delivery term, we accept EXW, FOB, CIF, DDU. About the payment, we accept T/T or L/C.
7. Q: What is your MOQ?
