Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hydraulic Lifting Rail Transfer Cart Electric Industrial Transportation Use For Aluminum Coil And Steel Transportation | Type: | Coil Rail Transfer Cart |
|---|---|---|---|
| Wheel Base(mm): | 1200-7000 | Ground Clearance(mm): | 50 |
| Running Speed(m/min): | 0-15 | Wheel Diameter(mm): | 270-600 |
| Reference Weight(t): | 6.8-26.8 | Color: | Customized |
| Max Wheel Load(KN): | 14.4-265.2 | ||
| Highlight: | electric transfer cart,load transfer trolley,Hydraulic Lifting Industrial Transfer Trolley |
||

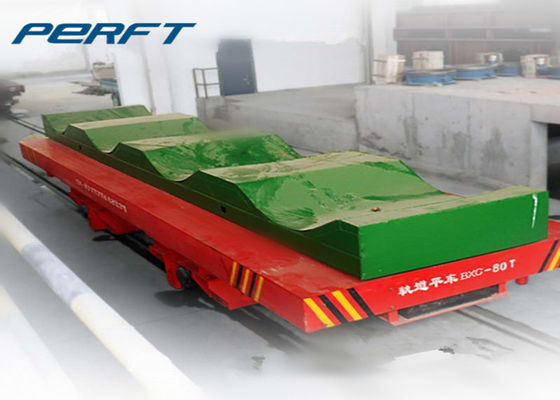

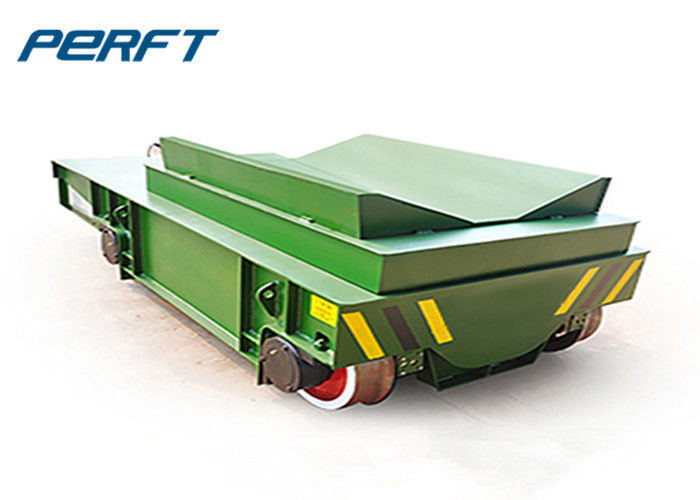

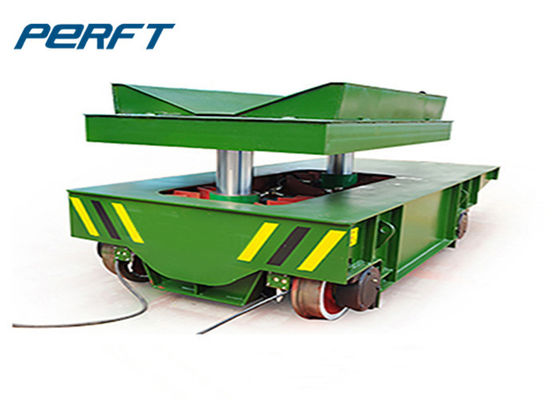

hydraulic lifting rail transfer cart electric industrial transportation use for aluminum coil and steel transportation
The hydraulic lifting rail transfer car electric industrial transportation use for aluminum coil and steel transportation is powered by cabled drum which the power source 380V alternating-current is supplied to the coil electric industrial transportation motor by cable. Cable is collected and released by coiling handling equipment mounted underneath the material handling equipment. The coil electric rail industrial transportation can achieve the automatic operation by PLC system. The coil rail transfer cart can be applied in the working condition of severe environment,high temperature, anti-explosive etc. Simple structure and low cost make hydraulic lifting rail transfer car electric industrial transportation use for aluminum coil and steel transportation popular for factory workshop material transportation. The hydraulic lifting rail transfer car electric industrial transportation use for aluminum coil and steel transportation no limitation of capacity and frequently using. If the running distance is beyond 50m, the hydraulic lifting rail transfer car electric industrial transportation use for aluminum coil and steel transportation needs to install cable arranger to help with cable rolling. The max running distance of the hydraulic lifting rail transfer car electric industrial transportation use for aluminum coil and steel transportation can be up to 200-400m.
Advantage and functions of the hydraulic lifting rail transfer car electric industrial transportation use for aluminum coil and steel transportation
Main Componences of the hydraulic lifting rail transfer car electric industrial transportation use for aluminum coil and steel transportation
Technical Table of the hydraulic lifting rail transfer car electric industrial transportation use for aluminum coil and steel transportation
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Battery Voltage(v) | 24 | 48 | 48 | 72 | 72 | |
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | |
The Scheme of the hydraulic lifting rail transfer car electric industrial transportation use for aluminum coil and steel transportation
Application and Usage of the hydraulic lifting rail transfer car electric industrial transportation use for aluminum coil and steel transportation

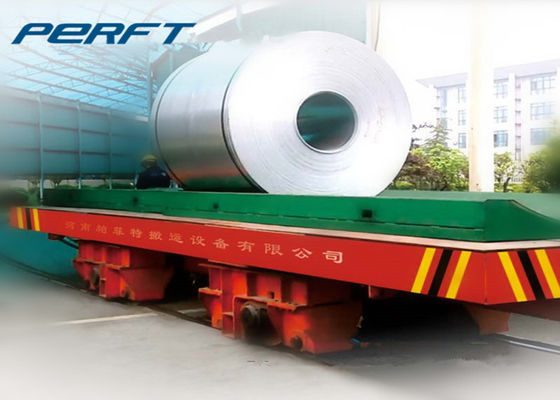

The application of our hydraulic lifting rail transfer cart is working at the coil factory.
Packaging & Shipping of the hydraulic lifting rail transfer car electric industrial transportation use for aluminum coil and steel transportation
