Product Details:
Payment & Shipping Terms:
|
| Ground Clearance(mm): | 50 | Wheel Base(mm): | 1200-7000 |
|---|---|---|---|
| Product Name: | Motorized Coil Transfmotorized Coil Rail Transfer Cart Which Can Be Customized Steel Plate Electric Transfer Cart Cart Which Can Be Customized Steel Plate Electric Transfer Cart | Type: | Coil Rail Transfer Cart |
| Running Speed(m/min): | 0-15 | Rail Inner Gauge(mm): | 1200-2000 |
| Wheel Diameter(mm): | 270-600 | Color: | Customized |
| Highlight: | electric transfer cart,load transfer trolley,Motorized Coil Rail Transfer Cart |
||

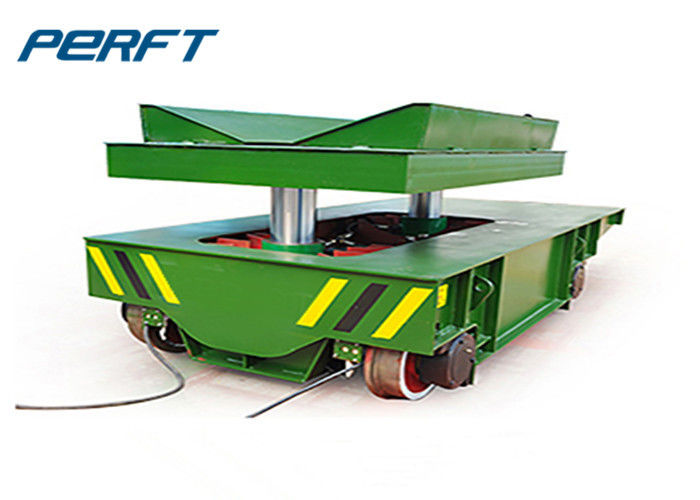

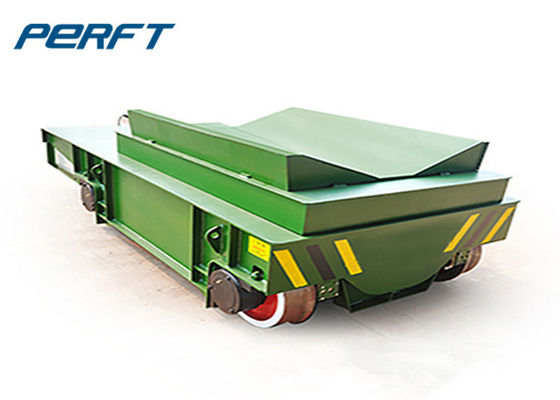

motorized hydraulic lifting coil Rail Transfer Cart which can be customized steel plate electric transfer cart
The motorized hydraulic lifting coil rail transfer cart which can be customized steel plate electric transfer cart is powered by cabled drum. The power source 380V alternating-current is supplied to the traction motor by cable. Cable is collected and released by coiling device mounted underneath the hydraulic lifting coil rail transfer cart. The hydraulic lifting coil rail transfer cart can realize full automatic operation by PLC system. The hydraulic lifting coil rail transfer cart can be applied in the environment such as severe environment,high temperature, anti-explosive etc. Simple structure and low cost make the hydraulic lifting coil rail transfer cart popular for workshop transportation. The hydraulic lifting coil rail transfer cart can be applied in the occasion with any loading capacity and high using frequency. If the running distance of the hydraulic lifting coil rail transfer cart is beyond 50m, the hydraulic lifting coil rail transfer cart needs to install cable arranger to help with cable rolling. The max running distance of the hydraulic lifting coil rail transfer cart is up to 200-400m.
Advantage and functions of the motorized hydraulic lifting coil Rail Transfer Cart which can be customized steel plate electric transfer cart
Main Componences of the motorized coil transfer cart which can be customized steel plate electric transfer cart
Technical Table of the motorized coil transfer cart which can be customized steel plate electric transfer cart
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Battery Voltage(v) | 24 | 48 | 48 | 72 | 72 | |
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | |
The Scheme of the motorized coil transfer cart which can be customized steel plate electric transfer cart
Application and Usage of the motorized coil transfer cart which can be customized steel plate electric transfer cart

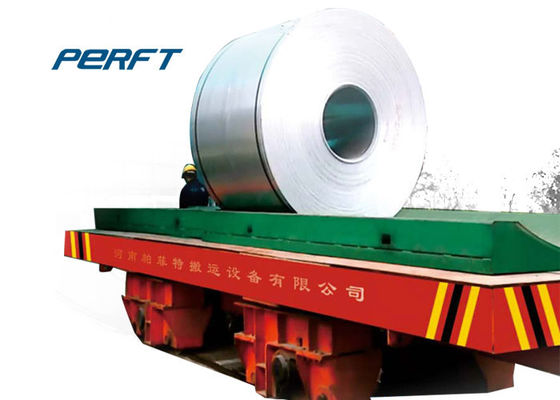

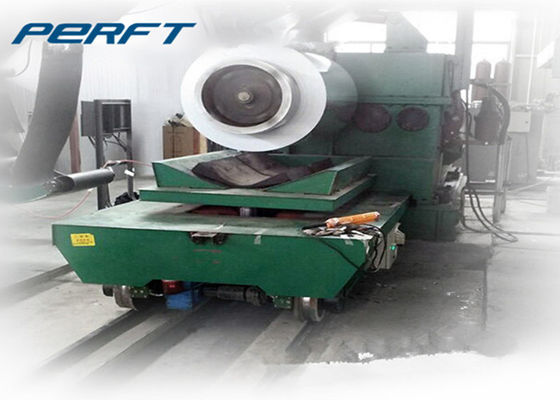

Our motorized coil transfer cart which can be customized steel plate electric transfer cart can be widely applied in Metallurgy, Machinery Fabrication, Auto makers, Heavy Industrial, Light Industrial, Mould Maker, Construction Machinery maker, Shipyard, Port Cargo Yard, Steel Transfer, Mining Transfer, Air and Space as well as Military industries and so on to transfer and handling equipment or material from workshop to workshop or from bay to warehouse.
Packaging & Shipping of the motorized coil transfer cart which can be customized steel plate electric transfer cart
Our Factory
Henan Perfect Handling Equipment Co., Ltd is a professional & international manufacturing factory specialized in researching, developing, producing and selling material handling equipment.We have got CE, SGS, ISO, CO certificates about our products, and our products have been exported to more than 30 countries and regions.Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-1300 tons, our main products including BDG conductor rail transfer car, BJT cable drum transfer car, BHX safety sliding line transfer car, BXC battery transfer car, BTL towed cable transfer car, BP non-power transfer car, BQY train towed transfer car, BWP trackless transfer car and special transfer car, such as turning transfer cart, trackless cart, ladle transfer cart, hydraulic lifting coil transfer car on rails, ferry transfer cart, painting room transfer cart, blasting booth transfer cart, etc.
Q & A
1. Q: What is the size and load of this coil rail transfer cart ?
A:The size and load of our this rail transfer cart is customized design according to your requirement.
2. Q: How should I operate this coil rail transfer cart ?
A: The rail transfer cart is controlled by pendant & remote radio control. The controller could be push button or joy-sticker.
3. Q: Is there any braking system on this coil rail transfer cart ?
A: Yes, there are electromagnetic brakes on the rail transfer cart. When the Hydraulic lifting electric coil rail transfer car for foundry plant material handling is power off, the brake will work automatically. And there are emergency stop buttons on the remoter and the rail transfer cart, you can push it for emergency stop.
4. Q:What is the warranty period? What kind of service do you offer in the warranty period?
A: The warranty period for our product is 12 months from the time we delivery, during the warranty period, we will send spare parts to you on our own cost if damaged because of bad quality, and we will guide you how to replace it. If necessary, our engineer is available to your factory for maintenance.
5. Q: How do you transport the coil rail transfer cart and what is the package ?
A: For the big part, we will pack it with tarpaulin and wood pallet on the bottom of the rail transfer cart to prevent it from moving. For the small part, we will pack it in wood case.
6. Q: What is the leading time, delivery term, and payment term ?
A: Usually our leading time is 45 days, for some special trackless transfer cart, such as hydraulic lifting agv transfer cart, it maybe longer to 60 days. About the delivery term, we accept EXW, FOB, CIF, DDU. About the payment, we accept T/T or L/C.
7. Q: What is your MOQ?
