Product Details:
Payment & Shipping Terms:
|
| Product Name: | Scissor Hydraulic Lifting Rail Battery Transfer Heavy Transfer Cart | Ground Clearance(mm): | 50-75 |
|---|---|---|---|
| Type: | Heavy Duty Plant Trailer | Motor Power: | 1-15 |
| Material: | Carbon Steel | ||
| Highlight: | eavy duty equipment trailers,heavy load cart |
||

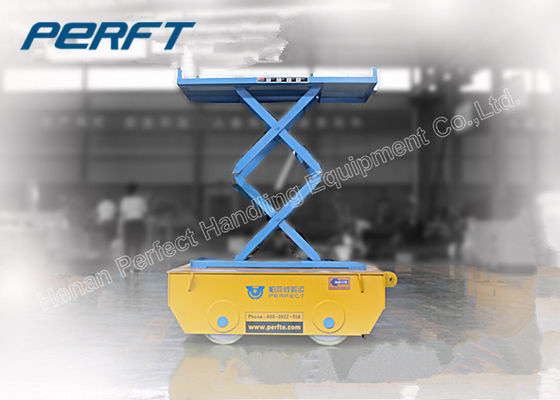

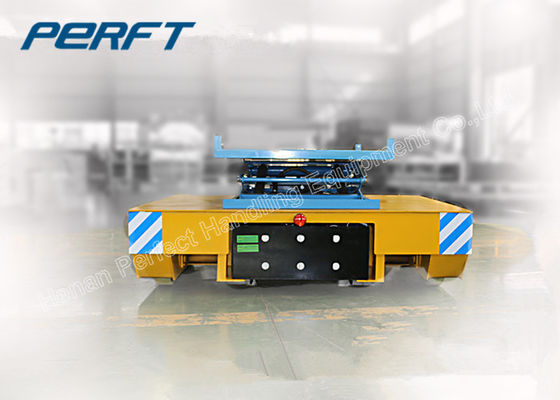

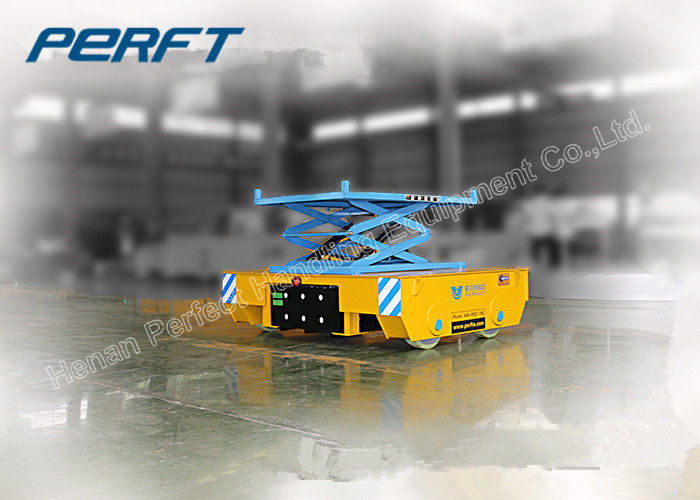

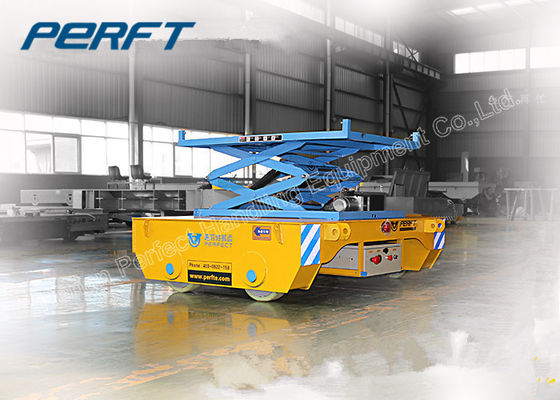

scissor hydraulic lifting rail battery transfer heavy transfer cart
The BWP series scissor hydraulic lifting rail battery transfer heavy transfer cart which can Turn 360 degree is consisted of power source, gear train, steel structure bearing frame, steering gear, running gear, control system and fault diagnosis module. other functions. The Transfer Car can turn around on the cement floor.All the Trackless Transfer Carts are equipped with warning alarm and security detection apparatus, and the alarm would ring and the car would stop immediately if there was any obstacle or pedestrian in the running path of the trackless vehicle. Also, we will provide intelligent automatic rapid charger with the car. Positioning fixture, lift platform and other assistive device are optional to meet different demands on various occasions. The PLC is also alternative if it’s necessary.
Advantages of the scissor hydraulic lifting rail battery transfer heavy transfer cart
1.The scissor hydraulic lifting rail battery transfer heavy transfer cart is Anti-high temperature,Anti-high explosion;
2.The scissor hydraulic lifting rail battery transfer heavy transfer cart is powered by battery;
3.With lifting holes,The scissor hydraulic lifting rail battery transfer heavy transfer cart is convenient to shipment;
4.The scissor hydraulic lifting rail battery transfer heavy transfer cart has a feature of stable start, big starting power, long lifetime;
5.The scissor hydraulic lifting rail battery transfer heavy transfer cartcan spin around 360 degrees;
6.Running distance of this scissor hydraulic lifting rail battery transfer heavy transfer cart is unlimited;
7.Safe and convenient operation is available for the scissor hydraulic lifting rail battery transfer heavy transfer cart;
8.High using frequency for the scissor hydraulic lifting rail battery transfer heavy transfer cart.
9.Low noise
scissor hydraulic lifting rail battery transfer heavy transfer cart's powered by electric devices, so when you are operating it, you can't feel much noise. It causes low noise level and give workers a good working environment.
10.Maximum safety
We always try our best to make sure the safety of the operators and the material handled. We do care the safety of everyone involved in the job.
11.Easy for operation
Our scissor hydraulic lifting rail battery transfer heavy transfer cart are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best by using our products.
Main components of the scissor hydraulic lifting rail battery transfer heavy transfer cart
Technical parameters of the scissor hydraulic lifting rail battery transfer heavy transfer cart
| Rated Load | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
Application and usage of the scissor hydraulic lifting rail battery transfer heavy transfer cart
The scissor hydraulic lifting rail battery transfer heavy transfer cart is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).
Processing Line of Our Material Handling Equipment
CNC Cutting and Preliminary Assembling
Welding and Post weld treatment
Assembling and Spray Primer
Paint finish and Debugging
Packaging & Shipping of the Customized 100ton Trackless Handling Vehicle-Industrial Material Electric Handing Trackless Transfer Trailer
The Heavy Load Industrial Handling body is packed with tarp, the cart wheel and parts will be packed with wooden case.
scissor hydraulic lifting rail battery transfer heavy transfer cart lenght is less than 5.9m, the width is less than 2.2m. Industrial Large Motorized Transport Carts will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container.If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by FR container(20 or 40 ft). If the cart is beyond above dimension, It needs to be transported by BB container.Determine the size & material of the box according to the shape & number of products.
Price Term: EXW, FOB, CIF, C&F,DDU, DDP.
Our Service
We always follow the principle that customers are our god and we will think about all the things in the position of consumers, to deal with all problems in high efficient and serious attitude. We will provide best service from the beginning till the end and pay more attention to credibility. Perfect is pursuing a perfect combination in quality and art and always try our best to provide most satisfied service for our consumers. Your satisfaction is what we are striving for!
Certifications
