| Table Size: | Customized | Running Speed(m/min): | 20 |
|---|---|---|---|
| Material: | Carbon Steel | Motor Power(Kw): | 3.5-15 |
| Product Name: | 20 Ton Die Handling Equipment For Sheet Metal And Coils Material Handling Equipmen20 Ton Die Handling Equipment For Sheet Metal And Coils Material Handling Equipment | ||
| Highlight: | die handling equipment,powered trolley cart,Carbon Steel Die Transfer Cart |
||
20 Ton Die Transfer Cart , Sheet Metal And Coils Material Handling Equipment
The BWP series 20 Ton Die Handling Equipment For Sheet Metal and coils Material Handling Equipment usually,accumulator,mains powered and generator are choose as power source.The current is supplied and generator are choose as power source.The Electric Trackless Transfer Flat Car is supplied to pulling motor through electric control system,which makes the 20 Ton Die Handling Equipment For Sheet Metal and coils Material Handling Equipment start,stop,move background,turn around and realize other functions.Also, we will provide intelligent automatic rapid charger with the car. Positioning fixture, lift platform and other assistive device are optional to meet different demands on various occasions. The PLC is also alternative if The 20 ton die mold transfer cart for sheet metal material handling equipment is necessary.
Advantages and functions of the 20 Ton Die Handling Equipment For Sheet Metal and coils Material Handling Equipment
1.The Die and Mold can be added to the 20 Ton Die Handling Equipment For Sheet Metal and coils Material Handling Equipment
2.No impairment for the cement ground, and can run freely to the cemment floor
3.The supply power can be customized
4.The V/U shape can be added to the 20 Ton Die Handling Equipment For Sheet Metal and coils Material Handling Equipment
5.The platform can added die and mold according to your requirements

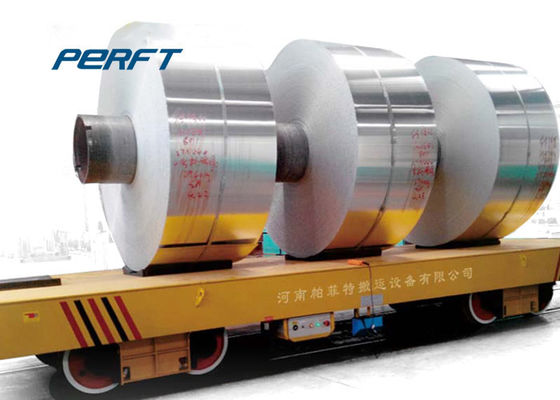

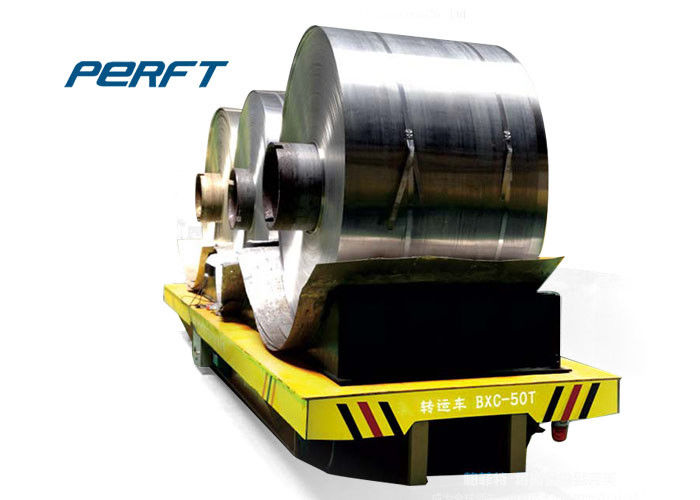

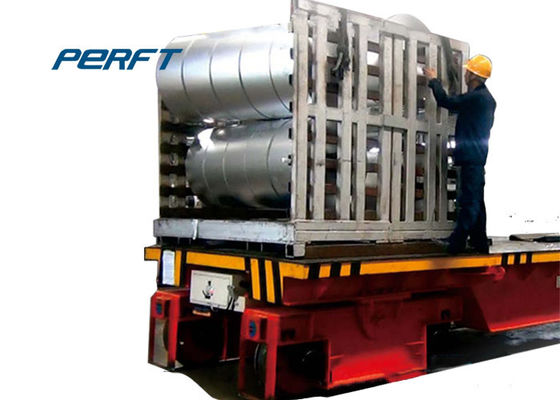

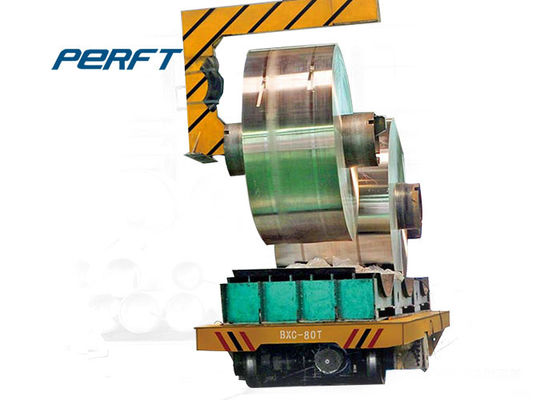

Detailed Image of 20 Ton Die Handling Equipment For Sheet Metal and coils Material Handling Equipment
The 20 Ton Die Handling Equipment For Sheet Metal and coils Material Handling Equipment consisted of power source,gear train,steel structure bearing frame,steering gear,running gear,control system and fault diagnosis module to better the Electric Trackless Transfer Flat Car.
Technical parameter table of 20 Ton Die Handling Equipment For Sheet Metal and coils Material Handling Equipment
| Rated Load | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
Application of the 20 Ton Die Handling Equipment For Sheet Metal and coils Material Handling Equipment
Stable and flexible during the turning in small space, we have optimized the steering mechanism, wheel press and frame rigidity to make it available for linkage of several trolleys. The 20 Ton Die Handling Equipment For Sheet Metal and coils Material Handling Equipment has been highly approved by our customers.
Packaging & Shipping of the 20 Ton Die Handling Equipment For Sheet Metal and coils Material Handling Equipment
The Heavy Load Industrial Handling body is packed with tarp, the cart wheel and parts will be packed with wooden case.
The Customized the 20 Ton Die Handling Equipment For Sheet Metal and coils Material Handling Equipment lenght is less than 5.9m, the width is less than 2.2m. Industrial Large Motorized Transport Carts will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container.If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by FR container(20 or 40 ft). If the cart is beyond above dimension, It needs to be transported by BB container.Determine the size & material of the box according to the shape & number of products.
Price Term: EXW, FOB, CIF, C&F,DDU, DDP.
