| Product Name: | Battery Operated Transfer Trolley Run On Rails | Load Capacity: | 1-300T |
|---|---|---|---|
| Running Speed: | 0-50/min(Adjustable) | Control Method: | Remote Control/Pendant |
| Table Size: | Customized | Height: | Customized |
| Certificates: | CE/ISO/SGS | ||
| Highlight: | electric transfer cart,load transfer trolley |
||
material shifting steel plant battery operated transfer trolley run on rails
The battery operated transfer trolley run on rails is welded by high quality steel, with the assistant of running mechanism , gears, AC motor, current collector, the cart will function under the control system. The transfer cart is remote control, or PLC control.The battery operated transfer trolley run on rails can be applied in the environment such as severe environment,high temperature, anti-explosive etc. Simple structure and low cost make it popular for workshop transportation. The battery operated transfer trolley run on rails can be applied in the occasion with any loading capacity and high using frequency. If the running distance is beyond 50m, the battery operated transfer trolley run on rails needs to install cable arranger to help with cable rolling. The max running distance is up to 200-400m.

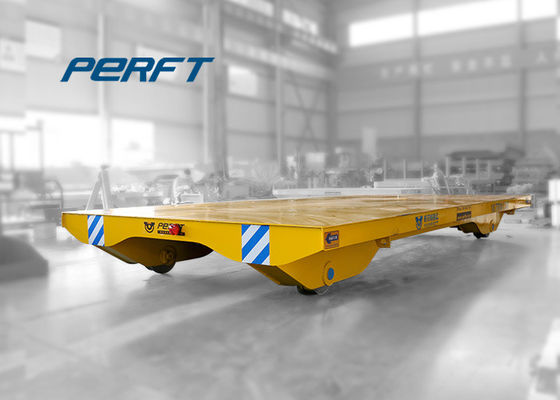

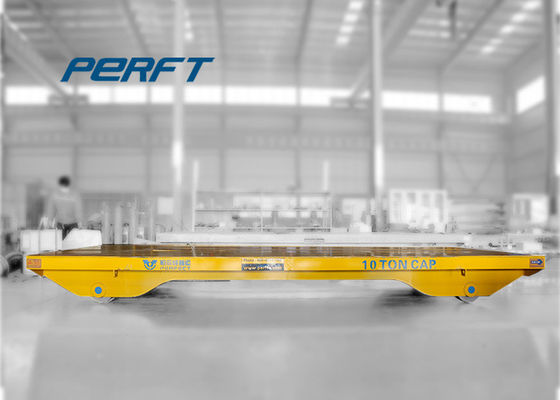

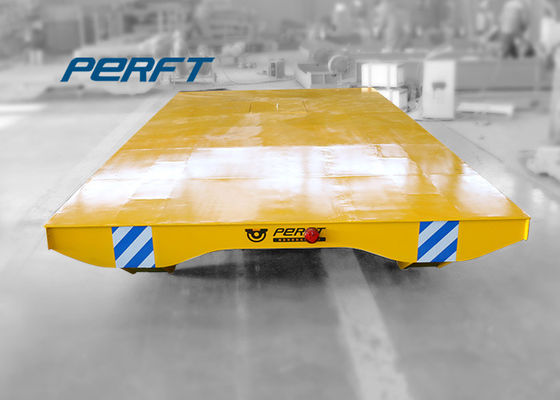

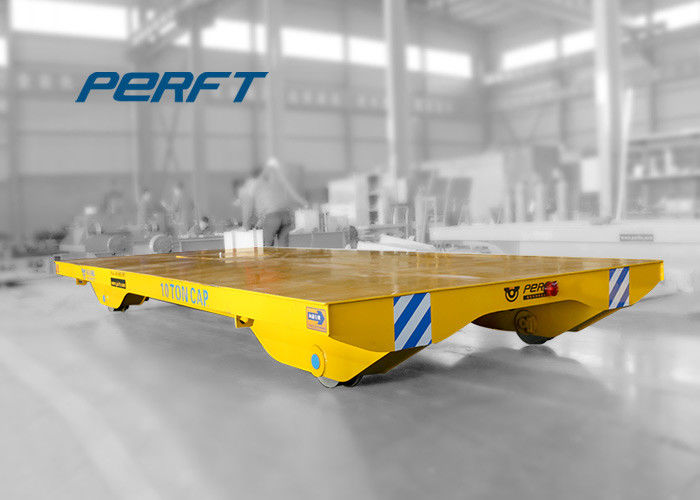

steel plant battery operated transfer trolley run on rails
Technical parameters of battery operated transfer trolley run on rails
| Model | KPDZ-2t | KPDZ-20t | KPDZ-50t | KPDZ-100t | KPDZ-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Transformer Power(KVA) | 3 | 6.8 | 10 | 30 | 30 | |
| Transformer Quanity | 1 | 1 | 1 | 1 | 1 | |
| Running Distance(m) | 70 | 70 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
