Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel | Running Speed(m/min): | 20 |
|---|---|---|---|
| Product Name: | 75 Ton Hydraulic Lifting Cable Reel Powered Industrial Transfer Trolley | Motor Power(Kw): | 3.5-15 |
| Rail Inner Gauge(mm): | 1200-2000 | Wheel Quantity: | 4 |
| Wheel Diameter(mm): | Ø270-Ø600 | Ground Clearence(mm): | 50-75 |
| Highlight: | load transfer trolley,material transfer trolley |
||
75 ton Hydraulic Lifting Cable Reel powered industrial Transfer Trolley
The 75 ton Hydraulic Lifting Cable Reel powered industrial Transfer Trolley usually,accumulator,mains powered and generator are choose as power source.The 75 ton Hydraulic Lifting Cable Reel powered industrial Transfer Trolley is cable reel powered and the supply power ways can be customized,such as battery,rail,cable drum...
The 75 ton Hydraulic Lifting Cable Reel powered industrial Transfer Trolley is designed for transporting heavy cargoes or equipment from one bay to another in factory. It can be used indoor or outdoor. The fields include metallurgy, foundry, new factory construction and shipbuilding and so on. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.
Advantages and functions of 75 ton Hydraulic Lifting Cable Reel powered industrial Transfer Trolley
1. Electric industrial Transfer Trolley is powered by the cable reel. The cable reel is the magnetic coupling to ensure the cable can operate smoothly without pressure.
2. The electric industrial Transfer Trolley can run automatically when the cable reel rolled up or released.
3. The general maximum running distance is less than 200m because of the limited cable. And you should add the line device to make the cable smooth when the distance is over 30m.
4. The series electric industrial Transfer Trolley mainly includes the car frame, motor, reducer, wheel, cable reel etc.
5. Industrial Transfer Trolley is designed for transporting heavy cargoes or equipment from one bay to another in factory.
6. Industrial Transfer Trolley can be used indoor or outdoor. The fields include metallurgy, foundry, new factory construction and shipbuilding and so on.

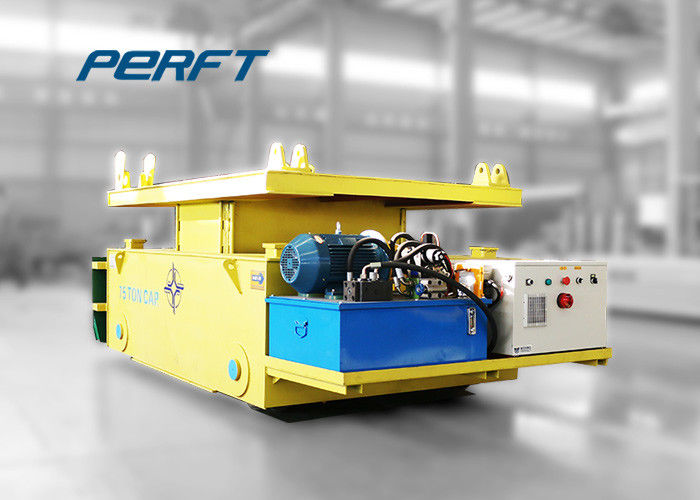

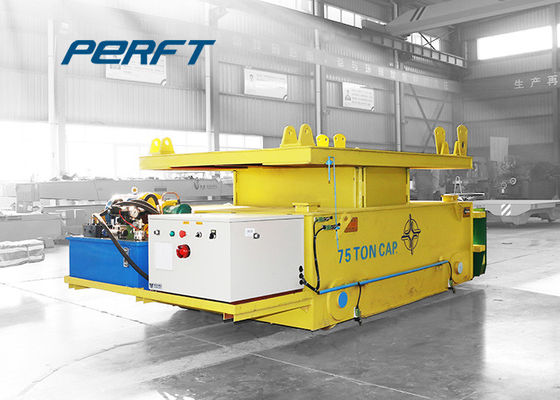

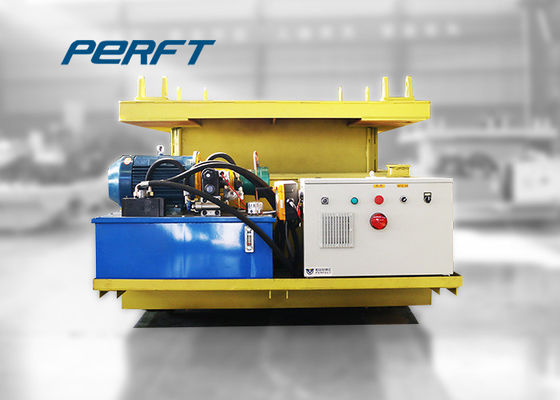

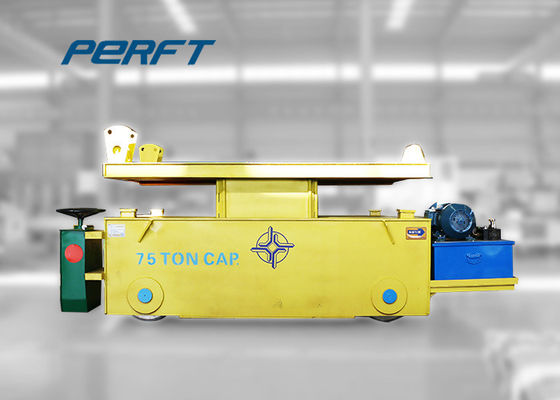

Detailed Image of 75 ton Hydraulic Lifting Cable Reel powered industrial Transfer Trolley
Technical parameter table of 75 ton Hydraulic Lifting Cable Reel powered industrial Transfer Trolley
|
Rated Load(t) |
2 |
10 |
20 |
30 |
40 |
50 |
63 |
80 |
100 |
150 |
|
Wheel Base(mm) |
1200 |
2600 |
2800 |
3200 |
3800 |
4200 |
4300 |
4700 |
4900 |
7000 |
|
Rail Inner Gauge(mm) |
1200 |
1435 |
1435 |
1435 |
1435 |
1435 |
1435 |
1800 |
2000 |
2000 |
|
Wheel Quantity |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
|
Wheel Diameter(mm) |
Ø270 |
Ø300 |
Ø350 |
Ø400 |
Ø500 |
Ø500 |
Ø600 |
Ø600 |
Ø600 |
Ø600 |
|
Ground Clearence(mm) |
50 |
50 |
50 |
50 |
50 |
50 |
75 |
75 |
75 |
75 |
|
Running Speed(m/min) |
0-25 |
0-25 |
0-20 |
0-20 |
0-20 |
0-20 |
0-20 |
0-20 |
0-20 |
0-18 |
Application of the 75 ton Hydraulic Lifting Cable Reel powered industrial Transfer Trolley
The 75 ton Hydraulic Lifting Cable Reel powered industrial Transfer Trolley is suitable for various occasions, for example, steel field, forged field, mold field, Heavy Industrial, Light Industrial, paper making field, Construction Machinery maker, Shipyard, Port Cargo Yard, warehouse, assembly line, Spray booth, Air and Space etc.
