Product Details:
Payment & Shipping Terms:
|
| Motor Power: | 1-15Kw | Product Name: | Die And Mold Transfer Cart For Factory Product Transportation With Motorized Coil Cart On Rails |
|---|---|---|---|
| Power Source: | Battery | Capacity: | 1-300ton |
| Running Time When Full Load: | 6 Hours | Ground Clearance(mm): | 50 |
| Turnning Radius(mm): | 2501-5201 | ||
| Highlight: | die handling equipment,powered trolley cart,Motorized Coil Die Transfer Cart |
||
Motorized Coil Die Transfer Cart On Rails For Factory Product Transportation
The Die and Mold Transfer Cart for factory product transportation with motorized coil cart on rails is able to run between two perpendicular tracks and the Die and Mold Transfer Cart for factory product transportation with motorized coil cart on rails is also could run on L-form track or S-form track or curved track. Also, Die and Mold Transfer Cart for factory product transportation with motorized coil cart on rails is specially designed to cooperate with crane, which has been applied in many factory to transfer conductor or materails from one workshop to another. The Die and Mold Transfer Cart for factory product transportation with motorized coil cart on rails has a feature of low height, heavy duty, safe security and other advantages.
Advantages and functions of the Die and Mold Transfer Cart for factory product transportation with motorized coil cart on rails

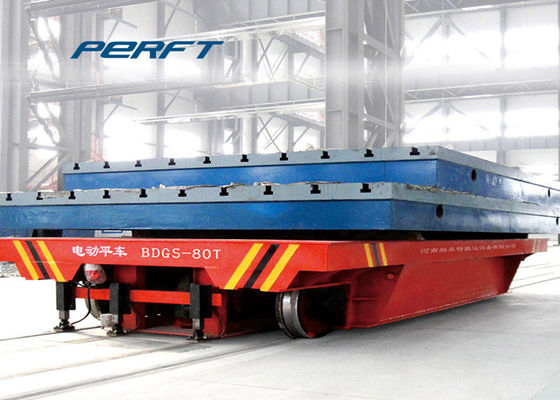

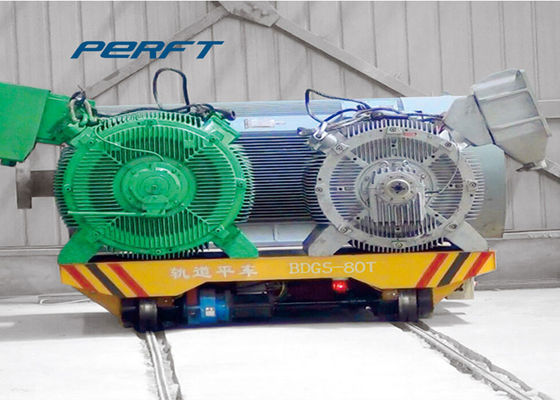

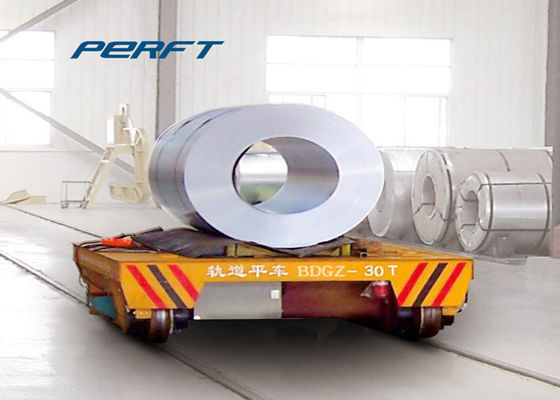

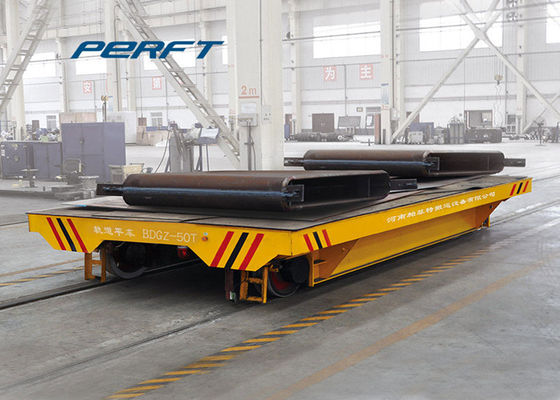

Detailed Image of Die and Mold Transfer Cart for factory product transportation with motorized coil cart on rails
The Die and Mold Transfer Cart for factory product transportation with motorized coil cart on rails consisted of power source,gear train,steel structure bearing frame,steering gear,running gear,control system and fault diagnosis module to better the Die and Mold Transfer Cart for factory product transportation with motorized coil cart on rails.
Technical parameter table of Die and Mold Transfer Cart for factory product transportation with motorized coil cart on rails
| Rated Load | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
Application of the Die and Mold Transfer Cart for factory product transportation with motorized coil cart on rails
Stable and flexible during the turning in small space, we have optimized the steering mechanism, wheel press and frame rigidity to make it available for linkage of several trolleys. The Die and Mold Transfer Cart for factory product transportation with motorized coil cart on rails has been highly approved by our customers.
