| Place Of Origin: | Henan, China (Mainland) | Color: | Customized |
|---|---|---|---|
| Material: | Q235 | Capacity: | 1-300ton |
| Running Speed: | 0-20m/min | ||
| Highlight: | load transfer trolley,material transfer trolley |
||

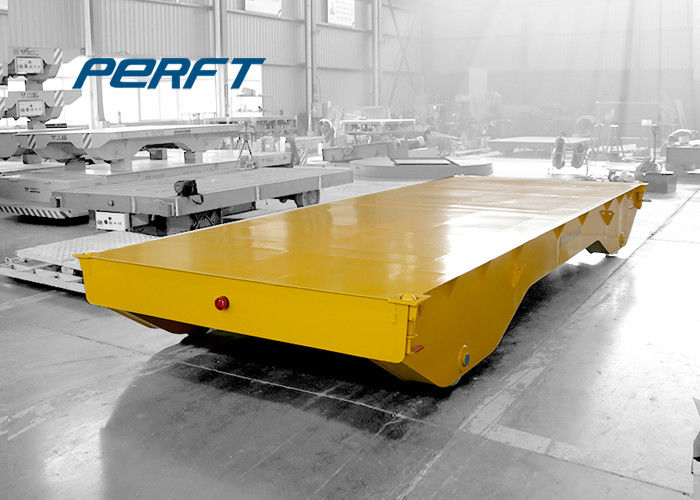

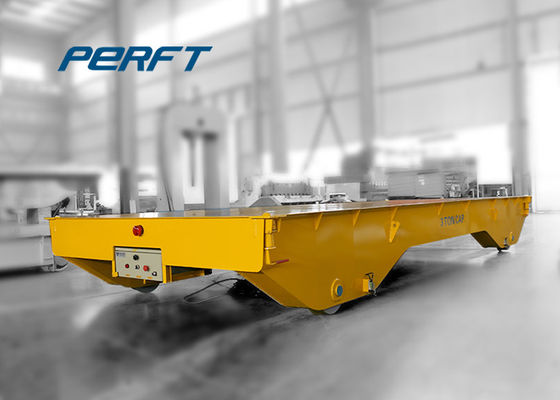

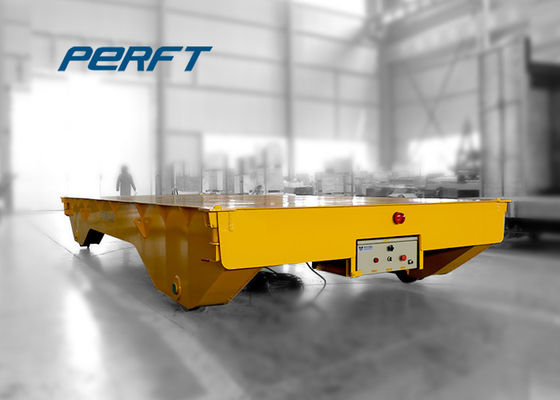

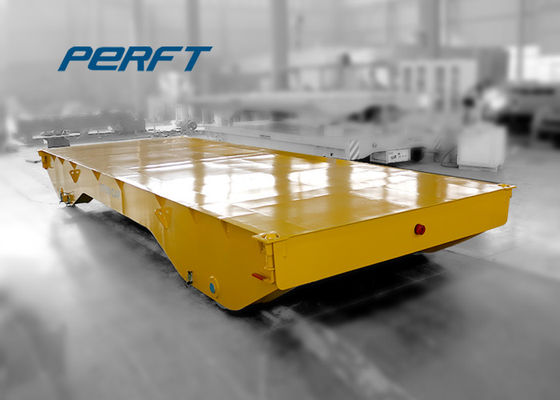

The BHX series customized cable reel power rail traveling flat electric transfer cart. The alterative current is suppiled consistently to the pulling motor by slide knife taken from sliding contact line through electric control system , which makes the car start ,stop, move forward and relize other functions.The sale sliding contact line can be installed in the middle of the tracks or by the outside of the tracks or in the trench or under the roof of the plant .Positing fixture ,lifture, lifting platform, clamping device and other auxiliary device are optional to meet different demands on various occasions. The BHX series is suitable in inflammable environment and in high requency.
Advantage:
Copared with other 50 ton steel coil transfer car , it is with low cost and high frequency;
The 50 ton steel coil transfer car can be applied in many occasions, such as bad environment, hightemperature,
AC motor,simple structure,not limited for the using time;
This kinds of 50 ton steel coil transfer car is powered by busbar, so there is not strict requirement for theconstruction of the railway;
Professional team from Henan Perfect Handling Equipment Co., Ltd
the proper solution can be provided once getting for your inquiry.
The 50 ton steel coil transfer car are customized as per your true demand.
| Model | BHX-2t | BHX-20t | BHX-50t | BHX-100t | BHX-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 25 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
