Product Details:
Payment & Shipping Terms:
|
| Product Name: | Cable Powered Transfer Cars Transportation | Powered Source: | Cable |
|---|---|---|---|
| Capacity: | 1-300T | Warranty: | 12 Months |
| Application: | Industrial Filed | Running Speed: | 0-20m/min |
| After-sales Service Provided: | Engineers Available To Service Machinery | ||
| Highlight: | electric transfer cart,load transfer trolley |
||

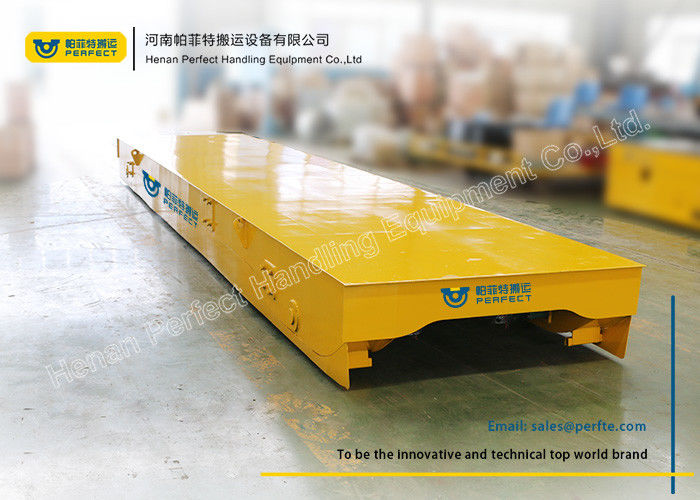

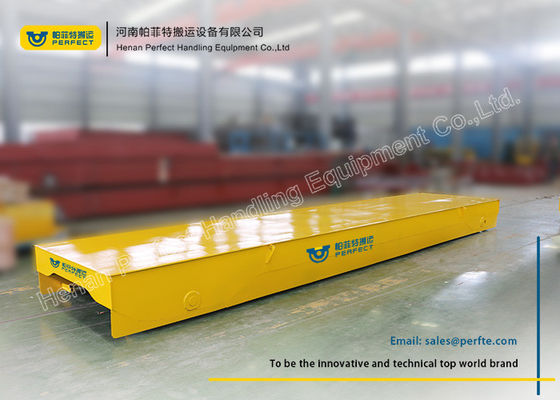

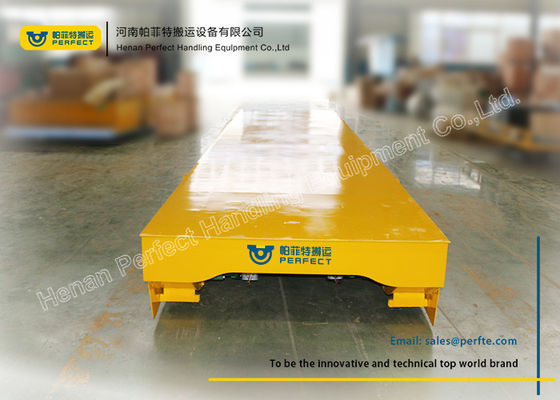

The BJT Series cable powered transfer cars transportation .The power source 380V alternating-current is supplied to the traction motor by cable. Cable is collected and released by coiling device mounted underneath the transfer cars. The cable reel powered transportation equipme.nt can realize full automatic operation by PLC system.
The cable powered transfer cars transportation can be applied in the environment such as severe environment,high temperature, anti-explosive etc. Simple structure and low cost make it popular for workshop transportation. The cable powered transfer cars transportation can be applied in the occasion with any loading capacity and high using frequency. If the running distance is beyond 50m, the cable powered transfer cars transportation needs to install cable arranger to help with cable rolling. The max running distance is up to 200-400m.
NOTES:
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
