| Place Of Origin: | Henan, China (Mainland) | Product Name: | Automatic Agv Transfer Cart |
|---|---|---|---|
| Application: | Industrial Filed | Color: | As Your Needs |
| Table Size: | Customized | Running Speed: | 0-20m/min |
| After-sales Service Provided: | Engineers Available To Service Machinery | Certification: | CE ISO SGS |
| Highlight: | electric transfer cart,material transfer trolley |
||

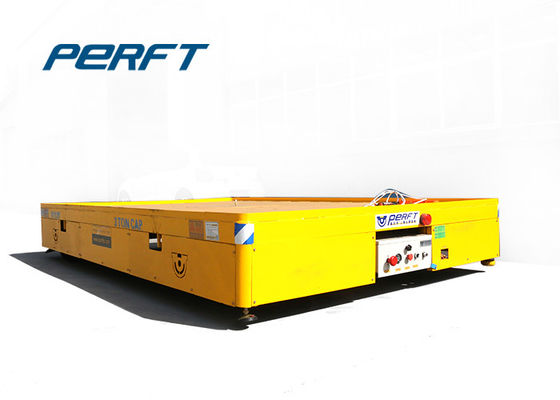

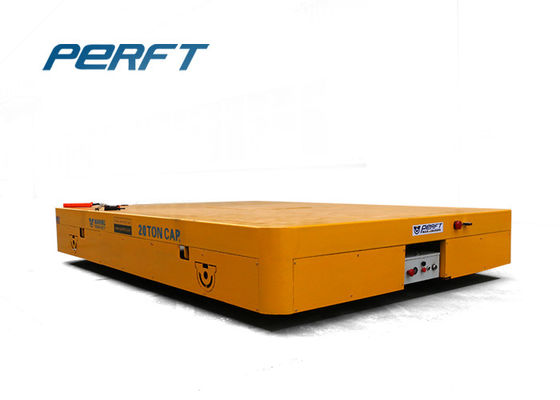

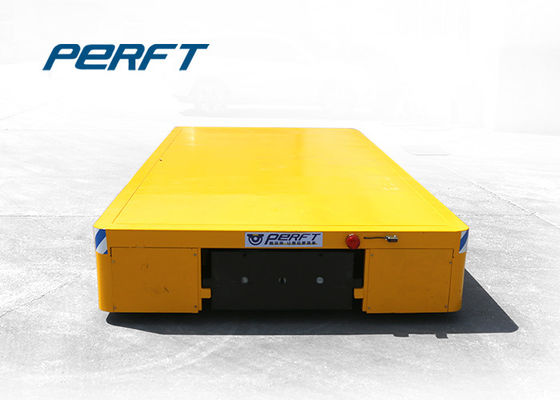

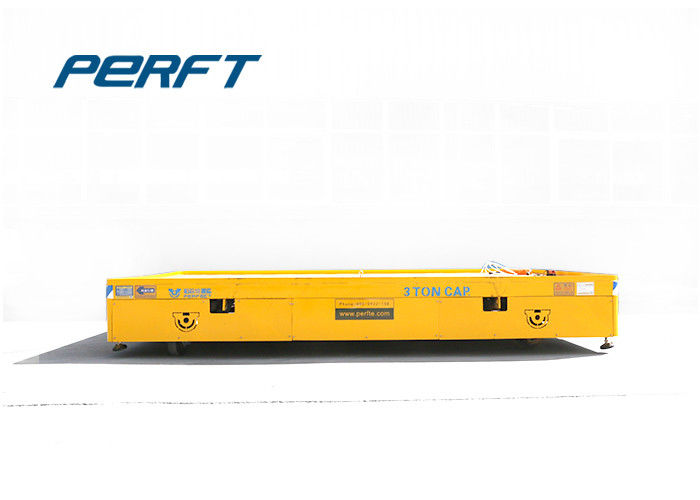

customized automatic guided vehicle automatic agv transfer cart handling materials
Automationc guide vehicle automatic agv transfer cart is a new style of halls and crane tracks carriage running on ground or floor for material handling,it is easy to turn 360 degrees at a minimum turning radius.
Our PERFECT company is the professional manufacturer of Automationc guide vehicle automatic agv transfer cart with more than 15 years experience,we also can add the special device on the heavy goods vehicle, such as hydraulic lifting, sound and alarm lights,electric scale,high temperature prevention,explosion prevention, etc.
Powered by storage battery
Factory history of 15 years
Turning at a minimum radius
Safety PU wheels for protection
Running an unlimited way
Operate easily
Maintenance convenient
|
Model
|
BWP-2T | BWP-10T | BWP-20T | BWP-30T | BWP-50T | BWP-63T | BWP-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000= | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
