Product Details:
Payment & Shipping Terms:
|
| Product Name: | Transfer Cart Powered By Dragging Cable | Load Capacity: | 1-300T |
|---|---|---|---|
| Table Size: | Customized | Height: | Customized |
| Running Speed: | 0-50/min(Adjustable) | Power Source: | Dragging Cable |
| Control Method: | Remote & Hand Held Control | Certificates: | CE ISO SGS |
| Highlight: | heavy duty die carts,powered trolley cart,Die Transfer Cart CE |
||

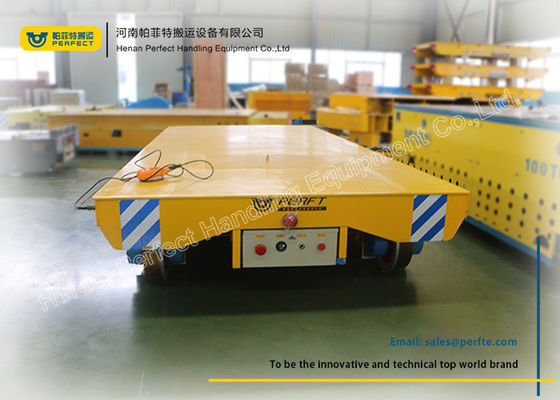

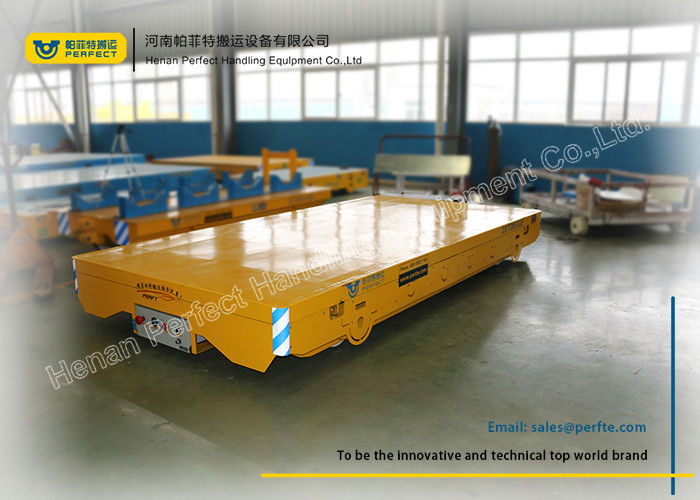

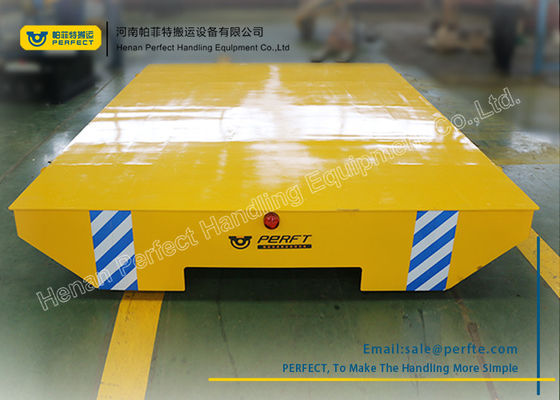

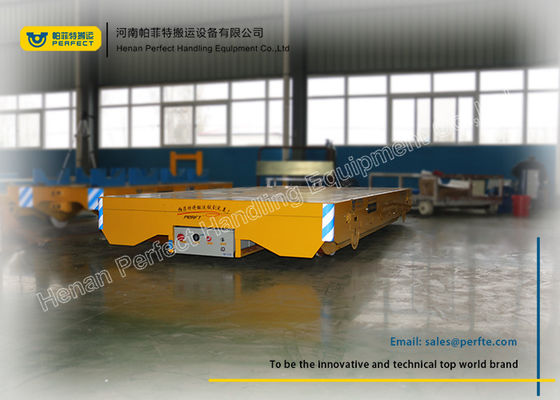

1T - 300T Railroad Wheelsets Die Transfer Cart Powered By Dragging Cable
Henan Perfect Railroad Cart Co., Ltd is a collection of research and development, design, manufacturing asone of professional international manufacturing company of Railroad Cart. Our company has been founded for 13 years and has become enterprise in the motorized transfer Railroad Cart business.
This BTL Railroad Cart powered by dragging cable. The towline is alternative to prevent the cable from abrasion if necessary. Hydraulic lifting system can be mounted on the Railroad Cartto meet the demand for car lifting. PLC mounted on the Railroad Cart can realize full automation operation.R
Cart.Railroad Cart.Railroad Cart
Cart Railroad Cart Railroad Cart.
| Model | BTL-2t | BTL-20t | BTL-50t | BTL-100t | BTL-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 25 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
