Product Details:
Payment & Shipping Terms:
|
| Product Name: | Heavy Load Transfer Carts Rails Manufacturer Motorized Transfer Carts | Item: | Cart |
|---|---|---|---|
| Application: | Transfer Materials | Color: | Customized |
| Material: | Q235 | Capacity: | Customized |
| Certificates: | CE ISO SGS | ||
| Highlight: | eavy duty equipment trailers,heavy duty industrial carts |
||

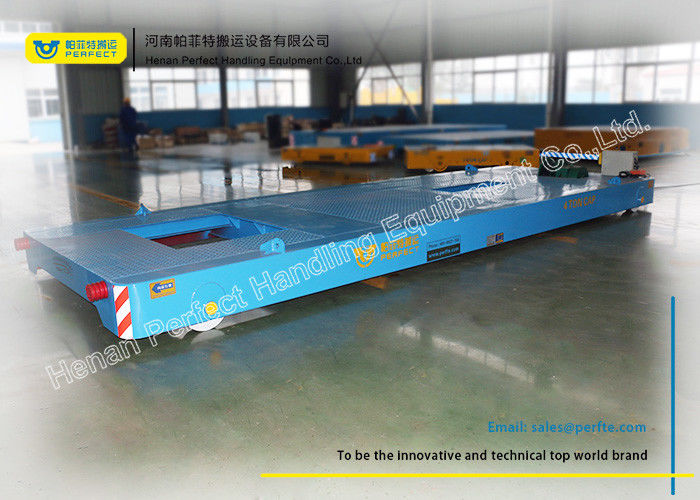

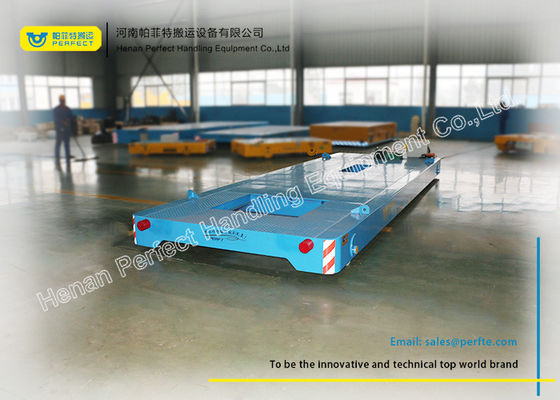

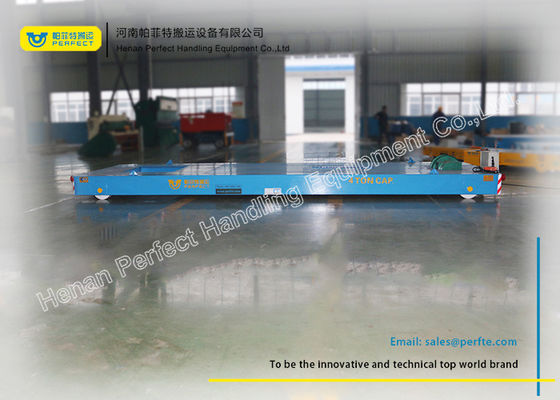

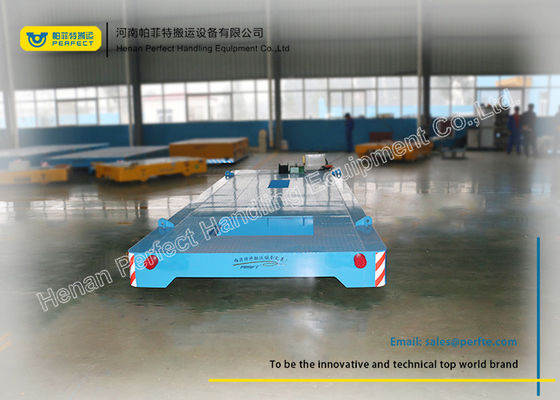

heavy load transfer carts rails manufacturer motorized transfer carts
The kinds of electric motorized transfer carts,which is powered by conductor rails, two phase, AC 36V safe voltage, to connect the two rails respectively. The heavy load transfer carts cart is no limitation of cable, it can get power from rails in any time. However, it is has strict requirement for the rails, which have to be insulated. (its rails is insulated with the ground, and its wheels are insulated with the ground.)
|
Model
|
BHX-10
|
BHX-20
|
BHX-50
|
BHX-100
|
BHX-150
|
|
|
Rated Load(t)
|
10
|
20
|
50
|
100
|
150
|
|
|
|
Length
|
2000
|
4000
|
5500
|
6500
|
10000
|
|
Width
|
1500
|
2200
|
2500
|
2800
|
3000
|
|
|
Height
|
450
|
550
|
650
|
850
|
1200
|
|
|
Wheel Base(mm)
|
1200
|
2800
|
3200
|
4900
|
7000
|
|
|
Rail Inner Gauge(mm)
|
1435
|
1435
|
1435
|
2000
|
2000
|
|
|
Wheel Diameter(mm)
|
400
|
400
|
500
|
600
|
600
|
|
|
Wheel Quantity
|
4
|
4
|
4
|
4
|
8
|
|
|
Ground Clearance(mm)
|
50
|
50
|
50
|
75
|
75
|
|
|
Running Speed(min)
|
25
|
20
|
20
|
20
|
18
|
|
|
Motor Power(kw)
|
2
|
2.5
|
5.5
|
11
|
15
|
|
|
Battery(v)
|
48
|
48
|
48
|
48
|
48
|
|
|
Max Wheel Load(KN)
|
14.4
|
77.7
|
174
|
343.8
|
265.2
|
|
|
Recommended Rail Model
|
P15
|
P24
|
P43
|
QU100
|
QU100
|
|
