Product Details:
Payment & Shipping Terms:
|
| Application: | Steel Industry, Factory, Warehouse, Port | Load Capacity: | 15T (Customized) |
|---|---|---|---|
| Tow Mode: | Draw Bar | Guard Rails: | Optional |
| Cart Frame: | Q235B | Control Mode: | Towing |
| Running Distance: | Ulimited | Working Time: | Ulimited |
| Wheel Type: | Cast Steel/Polyurethane Solid Wheels/Solid Tire Wheels | Color: | Customized |
| Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling | Power Mode: | Unpowered |
| Highlight: | eavy duty equipment trailers,heavy duty industrial carts |
||

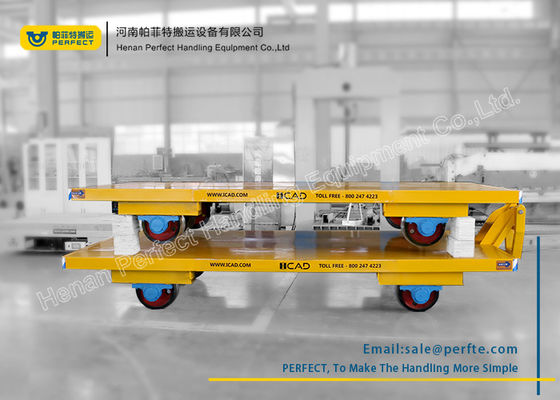

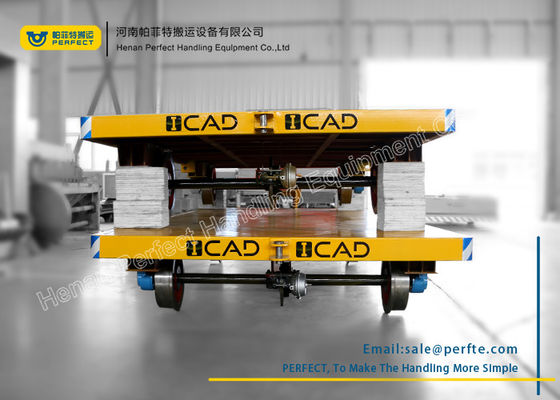

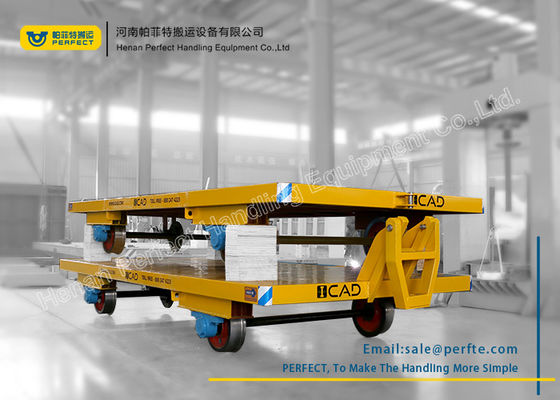

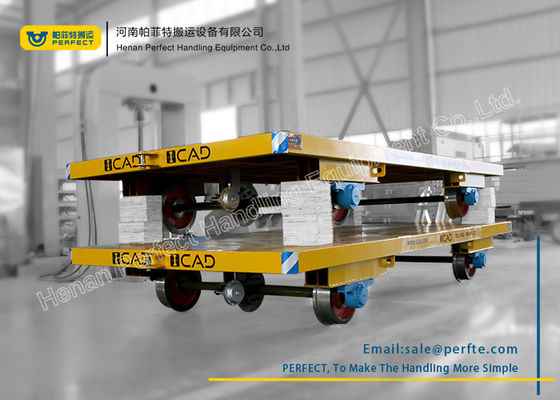

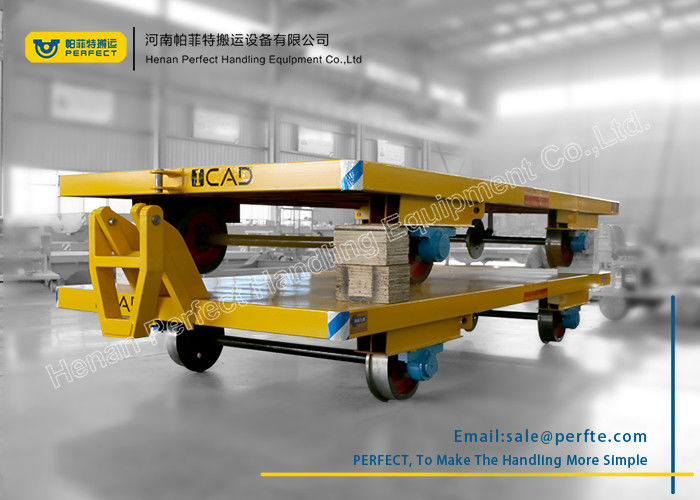

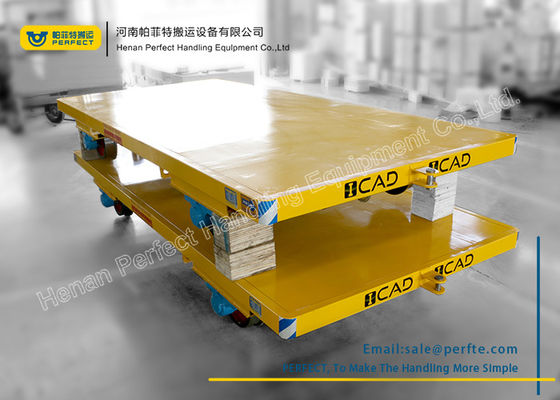

The road / rail flat trailer is designed to be towed either on road or rail track. It is manufactured to a high quality every time. The trailer bed also features a durable and anti-slip. These trailer have been also shot blasted to guarantee high quality and long-lasting resistance against corrosion. It is finished with 2-pack epoxy primer and paint, with the choice of a colour to suit your own personal preference.
The PERFECT customer design flat trailer is a simple, efficient and effective solution for the transportation of earthmoving and road construction machinery, heavy agricultural machinery, building materials, containers and many other types of equipment in restrictive spaces. Heavy duty single piece hydraulic ramps also come fitted as standard but other ramp options are available depending on your own personal preference as the customer.
It includes features such as durable chequer plate floor covering also allows for non slip adding both safety and reassurance for you the customer.
Please see the list of standard and optional features to create a trailer right for you.
Chequered plate floor or smooth surface table
Extra bed length
Swivel towing eye or draw bar
Color selection
Overall dimension
|
Model |
BWT-2T |
BWT-5T |
BWT-10T |
BWT-15T |
BWT-20T |
BWT-30T |
BWT-45T |
BWT-60T |
|
Rated Load(T) |
2 |
5 |
10 |
15 |
20 |
30 |
45 |
60 |
|
Table Size(mm) |
2000*1500 |
2500*1500 |
3000*2000 |
3200*2000 |
4000*2000 |
5000*2200 |
6000*2400 |
6000*2500 |
|
Height of Trailer (mm) |
500 |
600 |
700 |
750 |
750 |
800 |
850 |
950 |
|
Wheel Quantity |
4 |
4 |
8 |
8 |
8 |
12 |
12 |
12 |
|
Tire Specification |
254*102 |
305*165 |
559*254
|
559*356 |
22*9-10
|
22*9-10
|
22*10-16
|
22*14-16
|
|
Tire Material |
Polyurethane Solid Wheel, Press-on Solid Tire
|
|||||||
|
Frame Material |
Q235 |
Q235 |
Q235 |
Q235 |
Q235 |
Q345 |
Q345 |
Q345 |
|
Color |
Customized |
|||||||
|
Speed(km/h) |
0-20 |
0-20 |
0-20 |
0-20 |
0-15 |
0-15 |
0-15 |
0-10 |
Simple structure and low cost with high quality
Large load bearing with overload rate of 25% and resistance to deformation
Professional elaborate design (lifting hole is convenient for move)
Turning freely with small turning radius
Customized manufacturing
Environmental and flexible
Production process of customer design flat trailer
CNC Cutting
The steel plate is transported from warehouse to CNC cutting workshop for cutting.
Preliminary Assembling
Workers put the cut steel plate together according to the design drawing.
Welding
Weld the steel plate with automatic welding machine after the preliminary assembling.
Post weld treatment
Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress.
Spray Primer
Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint.
Assembling
Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
Paint finish
Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish.
Debugging
Debugging the cart after painting the finish with electric control system, after the debugging, the cart will be tested without load and then with load
After the inspection, the cart will be transported to storage area.
Our Factory
It's our great honor to introduce Henan Perfect Handling Equipment Co., Ltd. We have been specializing in steel frame trailer manufacture for over 15 years. With advanced equipment, excellent engineers and professional workers, we have got the certificates of CE, SGS, ISO.
Currently, our products not only have been sold in China, but also exported to American, Germany, Thailand, Holland, Turkey South Africa, Nepal, etc. We are becoming more and more popular around the world and get high evaluations from our cooperators.
