| Application: | Steel Industry, Factory, Warehouse, Port | Load Capacity: | 15T (Customized) |
|---|---|---|---|
| Tow Mode: | Draw Bar | Guard Rails: | Optional |
| Cart Frame: | Q235B | Control Mode: | Towing |
| Running Distance: | Ulimited | Working Time: | Ulimited |
| Wheel Type: | Polyurethane Solid Wheels/Solid Tire Wheels | Color: | Customized |
| Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling | Power Mode: | Unpowered |
| Highlight: | eavy duty equipment trailers,heavy duty industrial carts |
||

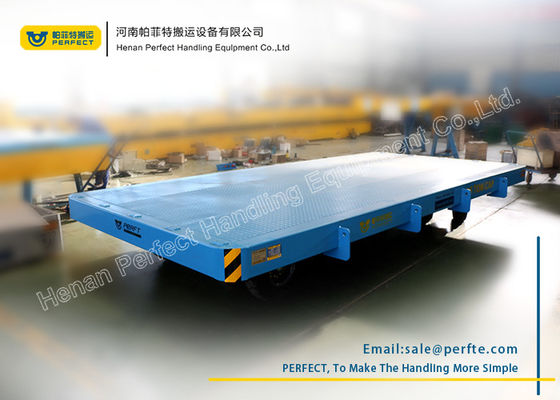

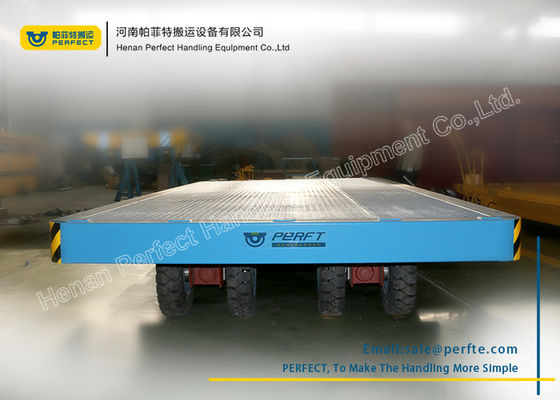

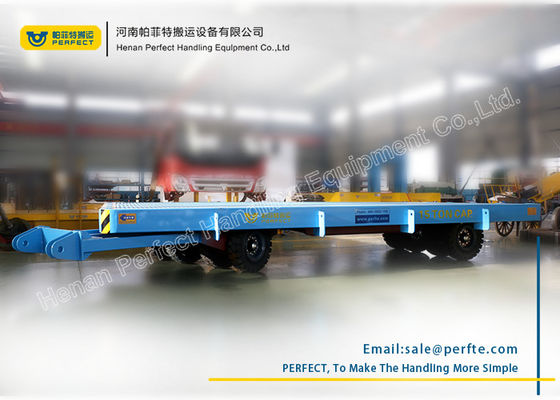

This kind of 8 wheels container transfer platform industrial trailer can be pushed by manpower or towed by other vehicles,such as winch, forklift or tractor,
Our 8 wheels container transfer platform industrial trailers had been exported to many countries. Typically, it is powered by forklift or tractors, so a drawbar is needed. There are two kinds of drawbar type, one is fixed length drawbar, the other is adjustable drawbar. The length can be customized as per customer’s demand. The turning radius is designed as per car dimension.
· Production assembly lines
· Material delivery
· Stock transfer
· Fork lift trailer
· Die transfer
Features of Transfer Platform Industrial Trailer:
· All welded construction of structural steel
· Two swivel and two rigid steel casters
· Coupling connection for towing
· Capacity signage both side
The 8 wheels container transfer platform industrial trailer has a lower cost than electric steerable car. If you need a car on cement floor and you have forklift or other tractor even a winch, when your budget is limit, the non-powered transfer platform industrial trailer is the best choice.
Trailer Frame
Material is Q235-B. It is formed by welding the section steel and steel plate together.This kind of design has the advantages of heavy carrying capacity and making the table bear equivalent force.

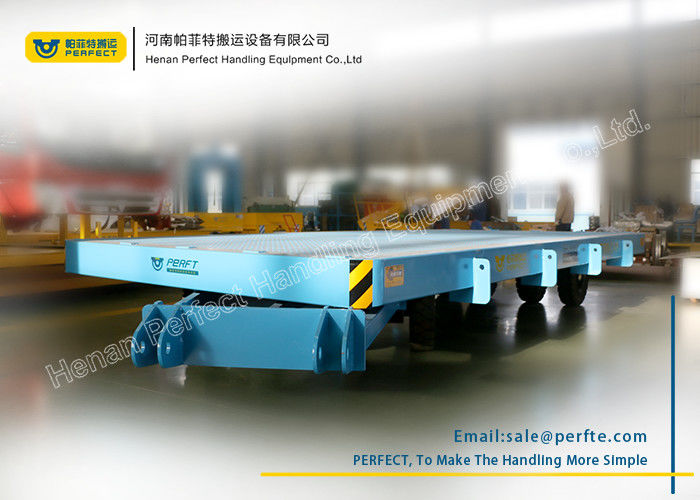

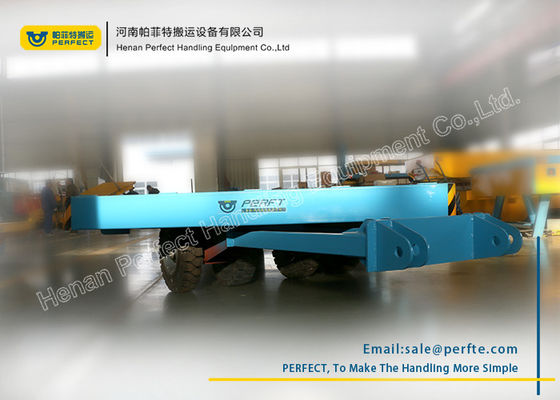

Towing Hook
This special towing hook can be working together with forklift,tractor, winch etc.
Soild Rubber Tyre
This kind of wheels is a strong polar polymer compound, it is more durable.
| Model | BWT-2T | BWT-5T | BWT-10T | BWT-15T | BWT-20T | BWT-30T | BWT-45T | BWT-60T |
| Rated Load(T) | 2 | 5 | 10 | 15 | 20 | 30 | 45 | 60 |
| Table Size(mm) | 2000*1500 | 2500*1500 | 3000*2000 | 3200*2000 | 4000*2000 | 5000*2200 | 6000*2400 | 6000*2500 |
| Height of Trailer (mm) | 500 | 600 | 700 | 750 | 750 | 800 | 850 | 950 |
| Wheel Quantity | 4 | 4 | 8 | 8 | 8 | 12 | 12 | 12 |
| Tire Specification | 254*102 | 305*165 |
559*254
|
559*356 |
22*9-10
|
22*9-10
|
22*10-16
|
22*14-16
|
| Tire Material |
Polyurethane Solid Wheel, Press-on Solid Tire
|
|||||||
| Frame Material | Q235 | Q235 | Q235 | Q235 | Q235 | Q345 | Q345 | Q345 |
| Color | Customized | |||||||
| Speed(km/h) | 0-20 | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-15 | 0-1 |
Our Service for Transfer Platform Industrial Trailer
1.Professional: More than 10 years manufacturing experience of 8 wheels container trabnsfer platform industrial trailers.
2.Super Service: All customers are our good friends
3.Good Quality: We have strict quality control system & team. High reputation in the market.
4. Fast Delivery Time
5. One year guarantee for whole trailer
6. Experienced Service Team, 24 hours technical support by e-mail
7. Equip user manual and operating instructions
8. High Reputation in More Than 30 Countries
9 .Full range products for choice(rail transfer cart, steerable transfer car, hydraulic lifting transfer platforms etc.)
10. Competitive Price , Attractive Design ,Best performance, High Good Quality
Parameter of Transfer Platform Industrial Trailer
If you have a material handling need or problem; PERFECT has a product and solution tailored for you! It could be our standard equipment or a completely custom design. We have manufactured never before built innovative equipment to overcome material handling boundaries and meet the specific needs of our customer. We have an in house engineering department; therefore we are able to offer our standard and custom equipment at a fair and competitive cost.
