Product Details:
Payment & Shipping Terms:
|
| Running Ground: | Cement Or Smooth Ground | Operation Mode: | Pandent And Remote Controller |
|---|---|---|---|
| Cart Frame: | Q235B | Rail Gauge: | 1435mm (Customized) |
| Color: | Yellow, Customized | Working Time: | 4-5 Hours |
| Wheel Type: | Polyurethane Solid Wheels | Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons |
| Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling | Dimension: | Customized |
| Highlight: | load transfer trolley,material transfer trolley |
||
Product Introduction

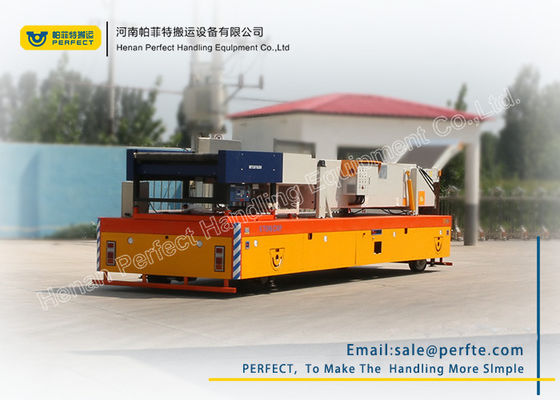

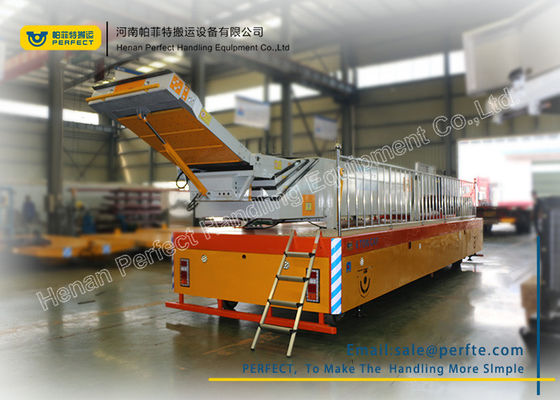

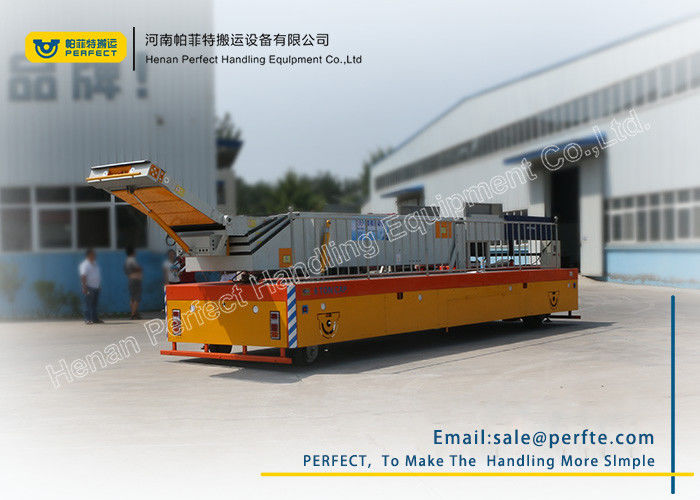

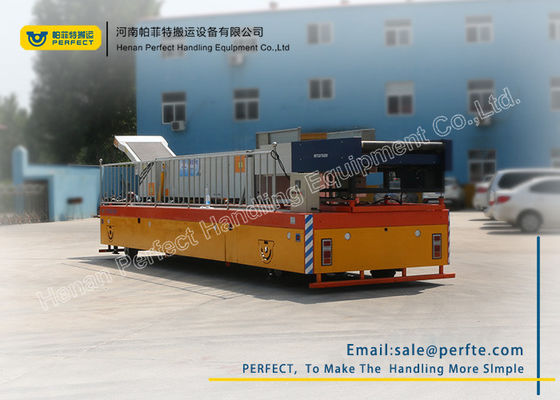

This electric trackless transfer trolley is customized by one of our client for special using. Our BWP series pallet transport vehicle is powered by storaged battery. It's elegant, reliable and high efficient. The wheel is made up of polyurethane solid wheels to make sure safe and quiet driving. You need to charge it for 8 hours and then keep it work for over 4 hours with full load. It's a right transfer vehicle for you !
Process Technology
1. CNC Cutting
The steel plate is transported from warehouse to CNC cutting workshop for cutting.
2. Preliminary Assembling
Workers put the cut steel plate together according to the design drawing.
3. Welding
Weld the steel plate with automatic welding machine after the preliminary assembling.
4. Post weld treatment
Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress.
5. Spray Primer
Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint.
6. Assembling
Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
7. Paint finish
Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish.
8. Debugging
Debugging the cart after painting the finish with electric control system, after the debugging, the cart will be tested without load and then with load. After the inspection, the cart will be transported to storage area.
Application fields
Our Transfer vehicle can be used in many different fields. For example:
Paper Making
In the process of paper making, workers need to transport raw materials-wood, transport papaer pulp and finally trasport products. It works smoothly and make sure the maximum safety.
Factory transport
In factory, the space is limited. Sometimes, it's hard to transport materials. However, our transfer vehicle can turn in 360 degrees. It's no doubt that this is a good choice for you !
Building Construction
Our transfer vehicle can also be used in ship building industry. We can use our transfer vehicle to transfer heavy steel and carry out other heavy duty tasks.
Steel Plant
In the steel plant, it is difficult for workers to move steel product on assemble line. They need our products to help them finished steel processing.
Advantages
Maybe you are interested in our products and want to buy trackless pallet transport vehicle, I think you can have a sincere consideration in our products.It's powered by electric devices, so when you are operating it, you can't feel much noise. It causes low noise level and give workers a good working environment.
We always try our best to make sure the safety of the operators and the material handled. We do care the safety of everyone involved in the job. Our vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best by using our products.
Parameters
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Impacted rated load(t) | 5 | 20 | 30 | 40 | 50 |
| Structure of Frame | Steel plates welded, beam | ||||
| thickness of the steel plate | 8 | 14 | 14 | 16 | 16 |
| Cart weight(t) | 4.3 | 7.9 | 8.8 | 10 | 10.5 |
| Max. wheel load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table size (mm) | 3000*2000 | 4500*2200 | 5000*2200 | 5500*2300 | 6000*2300 |
| Height of the whole cart (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning type | Turning while driving with no stop | ||||
| Control method for turning | Control button | ||||
| Turning structure | Mechanical | ||||
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel material | ZG55+hydropurture | ||||
| Running speed (m/min) | 0-15 | 0-12 | |||
| Brake principle | Electric magnetic brake | ||||
| Ground balance | mechanical automatic adjustment | ||||
| Operation method | With wire or no wire | ||||
| Battery model | D-250 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces |
| Charger's installation | Installed on cart | Split-type | |||
| Cart color | Yellow and warning sign | ||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | ||||
| Other functions | Turning light, night light and power display | ||||
Packing & Shipping
Why Choose US
1. We are professional design and manufacture transfer cart company.with 15 years experience in this fields.
2. We guarantee high quality product,we do care worker's safe.
3. Our warranty is 12 months, during this period, we can maintance is for you freely, after that period,we only charge cost price.
4. Various modes including email, telephone, and online for operating guidance.
5. Flexible payment method for customers' choice.
6. Excellent engineers' team are available at the any time for customers' questions.
