Product Details:
Payment & Shipping Terms:
|
| Product Name: | Heavy Loads Flat Rail Cart | Powered Source: | Storage Battery |
|---|---|---|---|
| Operation Mode: | Pandent And Remote Controller | Cart Frame: | Q235B |
| Rail Gauge: | 1435mm (Customized) | Color: | Black, Customized |
| Working Time: | 4-5 Hours | Wheel Type: | Cast Steel Wheel |
| Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons | Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Highlight: | motorised transfer trolley,die handling equipment |
||
Introduction

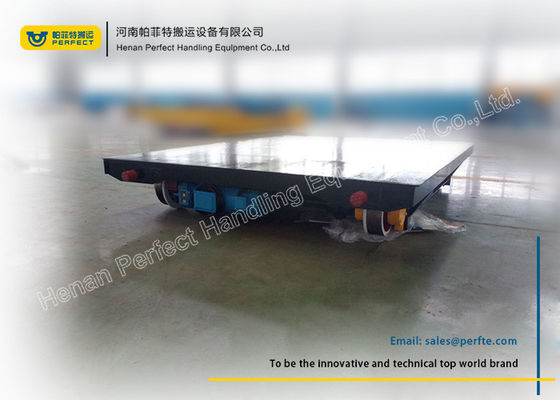

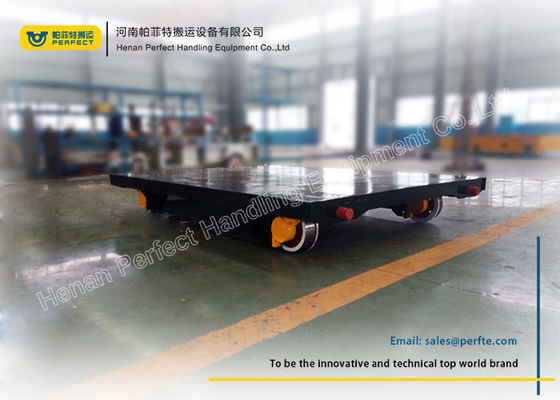

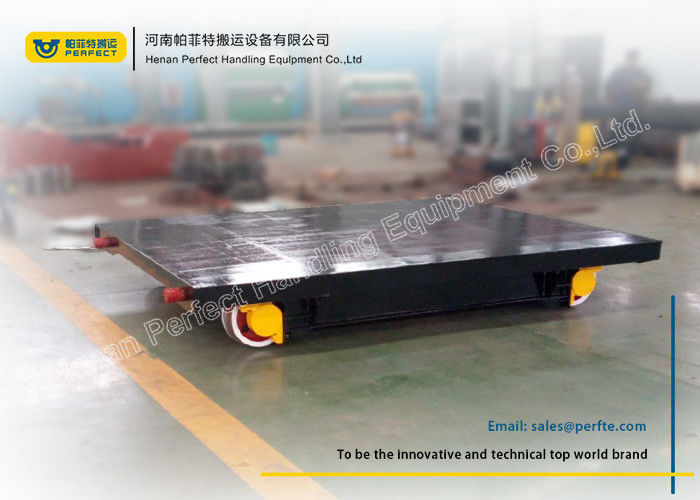

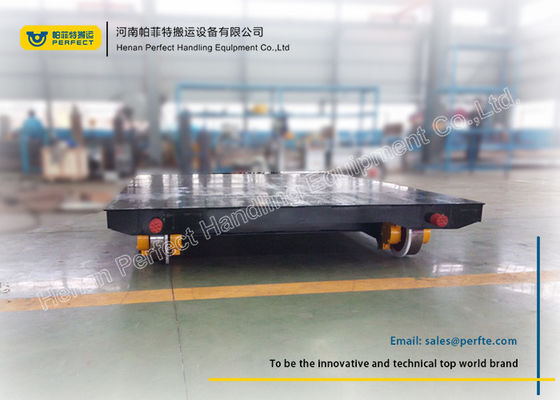

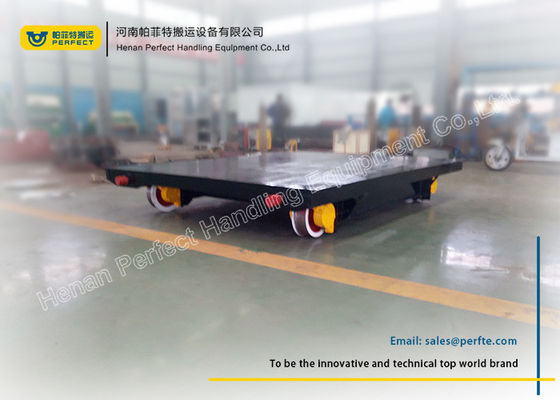

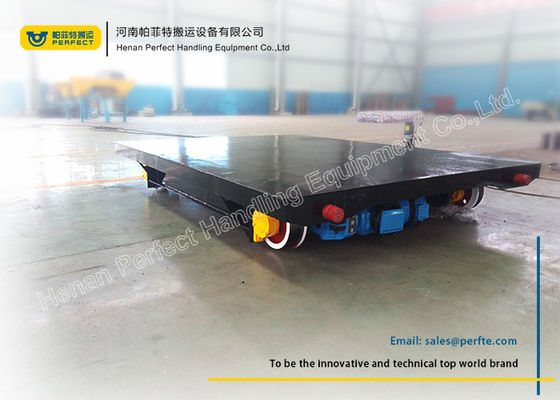

The rail transfer cart, also known as motorized transfer car, rail transport trolley, self-propelled die transporter, electrical flat cart, crossing traverser, is one kind of electric material transportation vehicle for industrial plants. The table size and loaded capacity are customized as clients’ application requirements.
First, rail transfer cart is a motorized tool for material handling, such as large scale machinery and equipment, heavy duty metal products, oversize processing molds, high temperature ladle, or mechanical parts etc.
Secondly, rail transfer cart is one kind of track vehicle, which need to run on tracks for fixed route guiding. Clients have to install the tracks as requirements. The tracks could be steel square tracks or I shape tracks. Our rail transfer cart can realize running on S shape, L shape, arc or ring shape track route.
Thirdly, the rail transfer cart is also one type of self-propelled carriage, which means it has a full set of driving system to move automatically. The rail transfer cart can be powered by storage battery, low voltage track, cable or bus bar.
Maybe you will have a consideration before buying a trolley, I think you are in a right place here. We are an experienced manufacturer, and we have been producting for transfe trolley for over 15 years. Most of our trolleys are customized. We can produce specific product as per you requirement. We alway abide by the principle that consumers are in the highest position and produce the most satisfaid products for you. Of course, our products can be use in many different situations, for example, in the factory, airport, wharf, construction, mine and so on. We can help you to get what you want to do!
Parameters
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Have A Look at Our Factory
If you are interested in our products, you may also want to know more about us. We have been specializing in steel frame trailer manufacture for over 15 years. With advanced equipment, excellent engineers and professional workers, we have got the certificates of CE, SGS, ISO. Currently, our products not only have been sold in China, but also exported to American, Germany, Thailand, Holland, Turkey South Africa, Nepal, etc. We are becoming more and more popular around the world and get high evaluations from our cooperators.
Help you to choose the most suitable cart
Thank you very much for looking through the information above. If you are interested in our products, please send us an E-mail and tell us the following information. Thank you!
