Product Details:
Payment & Shipping Terms:
|
| Product Name: | Battery Transfer Cart | Powered Source: | Storage Battery |
|---|---|---|---|
| Operation Mode: | Pandent And Remote Controller | Cart Frame: | Q235B |
| Rail Gauge: | 1435mm (Customized) | Color: | Yellow, Customized |
| Working Time: | 4-5 Hours | Wheel Type: | Cast Steel Wheel |
| Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons | Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Highlight: | battery transfer carriage,battery powered cart |
||

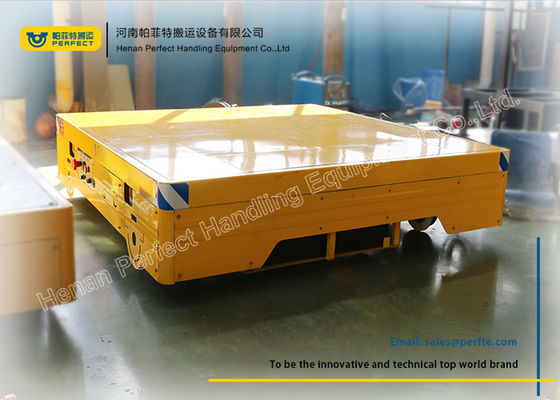

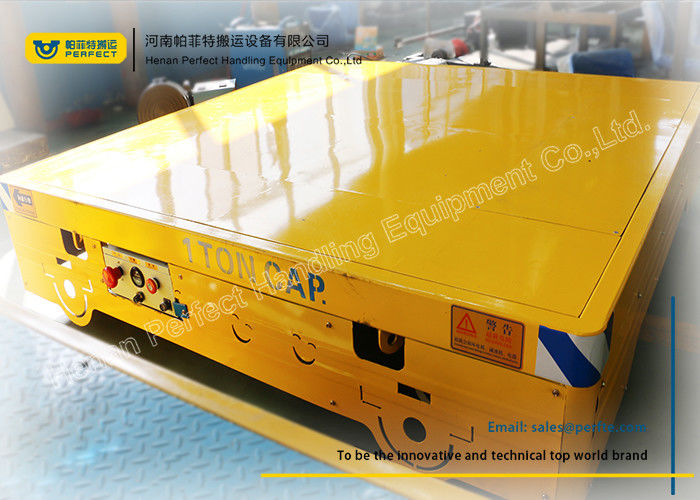

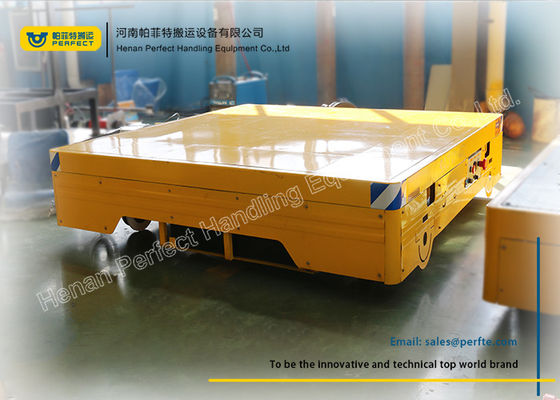

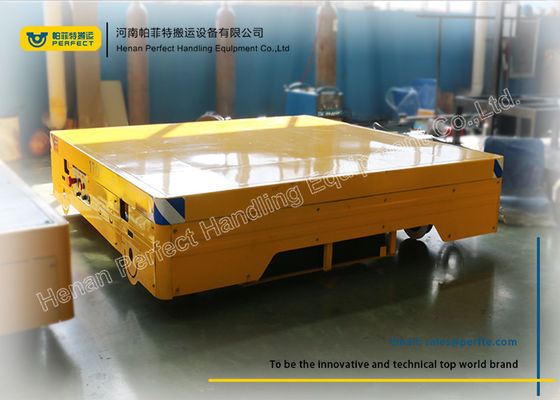

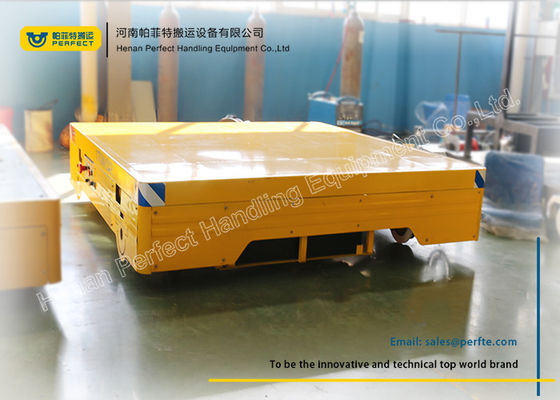

Introduction of Battery Motorized Transfer Trolley
As we all know, with the development of technology and information, we pay more attentin to environment protection. However, in our daily work, many handing equipment are still using oil consumming machines. It's no doubt that this is a great threat to our living conditions. However, changs has been make. Perfect has developed a new kind of transfer trolley that is powered bt storaged battery. You need to charge it for about 8 hours and then use it for over 4 hours. It's reliable, cost effective, environmental friendly. You can't miss it!
Carry All the Heavy Things You Want
Maybe you will have a consideration before buying a trolley, I think you are in a right place here. We are an experienced manufacturer, and we have been producting for transfe trolley for over 15 years. Most of our trolleys are customized. We can produce specific product as per you requirement. We alway abide by the principle that consumers are in the highest position and produce the most satisfaid products for you. Of course, our products can be use in many different situations, for example, in the factory, airport, wharf, construction, mine and so on. We can help you to get what you want to do!
Parameters of Battery Motorized Transfer Trolley
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Want To Contact Us?
Help you to choose the most suitable cart
Thank you very much for looking through the information above. If you are interested in our products, please send us an E-mail and tell us the following information. Thank you!
